Husqvarna 535 LK Trimmer/Edger

Model: 535 LK

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

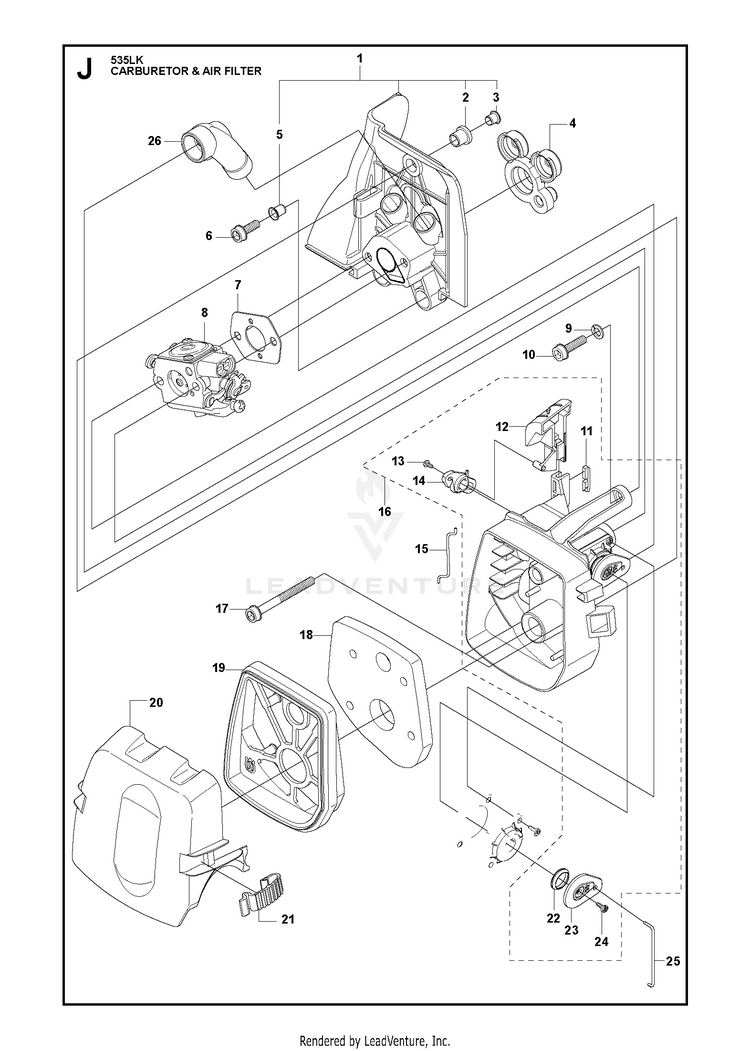

CARBURETOR & AIR FILTER

...
...
14
LEVER HUS-537355801
...
19
FRAME HUS-537314201
...
24
SCREW HUS-503212906
...
4
PIPE HUS-537334301
...
10
SCREW HUS-503200320
...
15
THROTTLE ROD HUS-544372701
...
12
CHOKE CONTROL HUS-537337101
...
7
GASKET HUS-503497101
...
17
SCREW HUS-503217550
...
13
SCREW HUS-503212906
...
16
FILTER HOLDER HUS-537314101
...
26
PIPE HUS-537341301
...
8
CARBURETTOR (ZAMA C1Q-EL36) HUS-581167501
...
6
SCREW HUS-503200316
...
1
PARTITION HUS-537371202
...
3
SLEEVE HUS-544019101
...
23
LEVER HUS-544014601
...
2
SLEEVE HUS-537371101
...
25
THROTTLE ROD HUS-537349001
...
5
SLEEVE HUS-537373803
...
18
AIR FILTER HUS-537337201
...
21
BUCKLE HUS-537387201
...
20
COVER, AIR FILTER HUS-537314401
...
9
WASHER HUS-503231006
...
22
BELLOWS HUS-544014701
...
11
RAIL HUS-544025801
