Husqvarna 525iDEPS Pruner/Pole Saw

Model: 525iDEPS

Save
 Part Not Listed?Part Not Listed?
product name

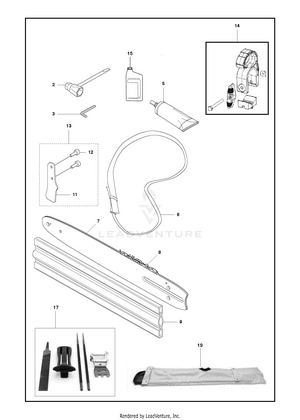

ACCESSORIES

...
...
9
GUARD BAR HUS-537129901
...
14
HARNESS BRACKET ASSY HUS-529370401
...
3
WRENCH HUS-575880701
...
15
BAR CHAIN OILS HUS-599727201
...
7
HUS 12" BAR LAM 3/8MIN 050 44D HUS-596298544
...
6
HARNESS WITHOUT HOOK HUS-537216203
...
11
SHEET HOOK HUS-574830101
...
19
NEEDS DESCRIPTION HUS-529781601
...
5
GREASE HUS-579064901
...
13
HOOK HUS-588197701
...
17
HUS FILE KIT 3/8 MINI (S93G) HUS-596638901
...
2
COMBINATION WRENCH COMBI TOOL HUS-531222001
...
8
12" CHN S93G 3/8 MIN .050 44DL HUS-585422144
...
12
SCREW ITXSCM HUS-574353505

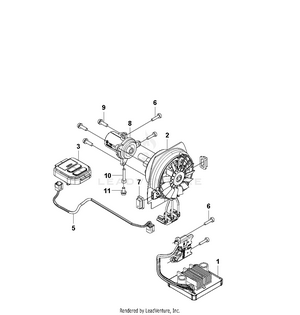

ELECTRICAL

...
...
1
CONTROL PANELS HUS-593841101
...
7
SUPPORT HUS-503911001
...
3
Controls HUS-593841201
...
11
SCREW ITXSCM HUS-525755108
...
2
MOTOR ASSY ADAPTER HUS-595010703
...
9
SCREW HUS-525755101
...
6
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
5
Wires HUS-593712001
...
10
SCREW ITXSCM M5X25 T27 12.9 T HUS-525824903
...
8
Brackets HUS-592933501

SHAFT

...
...
2
SCREW HUS-725237851
...
5
DIELECTRIC SHAFT IN PACKAGING DIELECTRIC SEGMENT HUS-599695501
...
3
KNOB CLAMPING SLEEVE HUS-576282401
...
1
HAND STOP HUS-599577101
...
4
NUT HUS-731231601
...
...
...
