Husqvarna 525 RX Brushcutter/Clearing Saw

Model: 525 RX

Back To Assemblies

Save Part Not Listed?
product name

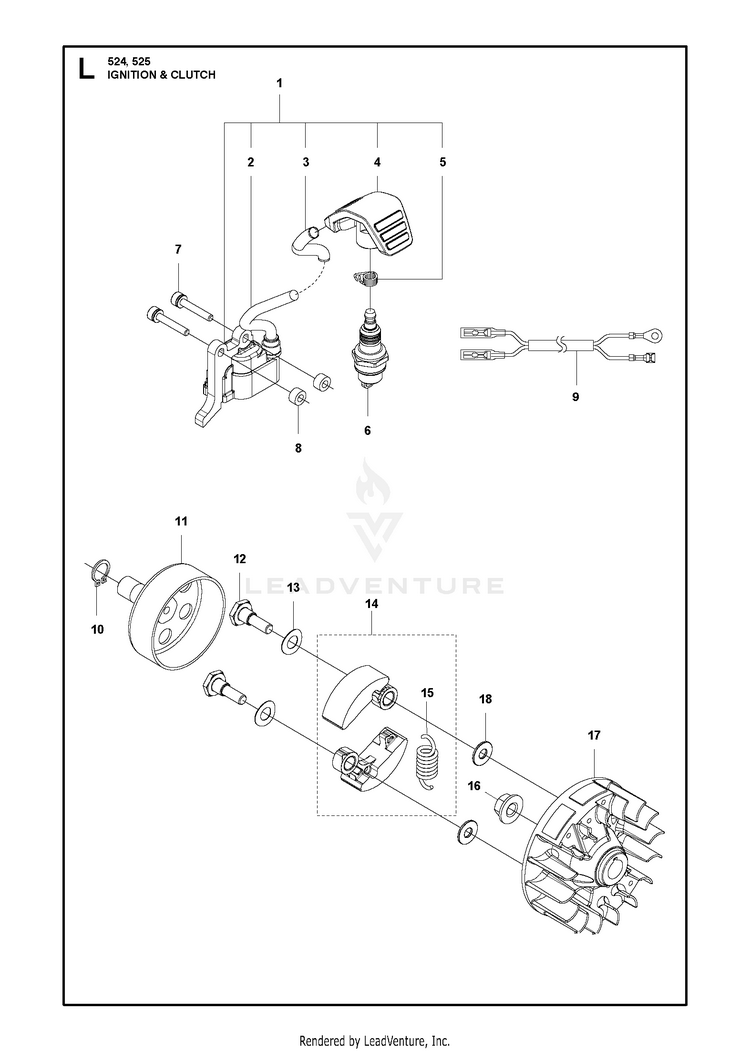

IGNITION SYSTEM & CLUTCH 2

...
...
17
FLYWHEEL HUS-578967801
...
8
SPACER HUS-588171401
...
13
WASHER HUS-521758201
...
6
SPARK PLUG HQT-2 RESISTOR Husqvarna HQT-2 HUS-590710101
...
4
SPARK PLUG CAP ROW HUS-586107201
...
10
RING HUS-516124101
...
3
TUBE ROW HUS-579590701
...
3
NEEDS DESCRIPTION US HUS-588945601
...
1
IGNITION COIL ROW HUS-587294701
...
9
SHORT CIRCUIT CABLE HUS-577851701
...
12
SCREW HUS-513189601
...
15
CLUTCH SPRING HUS-576400701
...
18
WASHER HUS-505054401
...
5
NEEDS DESCRIPTION HUS-588945701
...
4
NEEDS DESCRIPTION US HUS-588945801
...
1
IGNITION COIL US HUS-587294701
...
2
NEEDS DESCRIPTION US HUS-588945901
...
5
SPRING ROW HUS-580634801
...
14
CLUTCH ASSY HUS-585834701
...
7
BOLT M4 X 25 HUS-521515801
...
16
NUT(RPLS 1140-43230&182301) HUS-516437401
...
11
CLUTCH DRUM HUS-581142001
...
2
IGNITION CABLE ROW HUS-584826601
Schematic Image Zoomed
