Husqvarna 525 RX (2013-03) Brushcutters/Clearing Saws

Model: 525 RX (2013-03)

Back To Assemblies

Save Part Not Listed?
product name

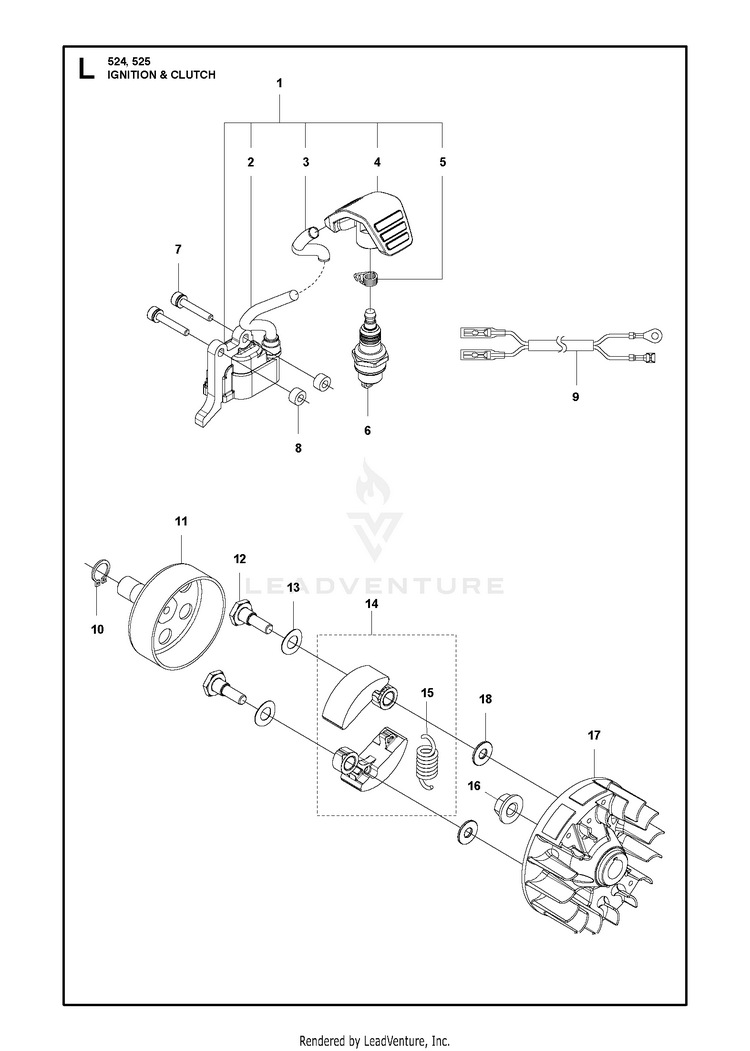

IGNITION SYSTEM CLUTCH

...
...
1
IGNITION COIL HUS-587294701
...
2
IGNITION CABLE . 1 HUS-584826601
...
3
TUBE . 1 HUS-579590701
...
4
SPARK PLUG CAP . 1 HUS-586107201
...
5
SPRING . 1 HUS-580634801
...
6
SPARK PLUG HQT-2 RESISTOR BPMR-8Y : NGK HUS-590710101
...
7
BOLT M4 X 25 HUS-521515801
...
8
SPACER HUS-588171401
...
9
SHORT CIRCUIT CABLE HUS-577851701
...
10
RING HUS-516124101
...
11
CLUTCH DRUM HUS-581142001
...
12
SCREW HUS-513189601
...
13
WASHER HUS-521758201
...
14
CLUTCH ASSY HUS-585834701
...
15
CLUTCH SPRING . 14 HUS-576400701
...
16
NUT(RPLS 1140-43230&182301) HUS-516437401
...
17
FLYWHEEL HUS-578967801
...
18
WASHER HUS-505054401
