Husqvarna 525 RK Brushcutter/Clearing Saw

Model: 525 RK

Back To Assemblies

Save Part Not Listed?

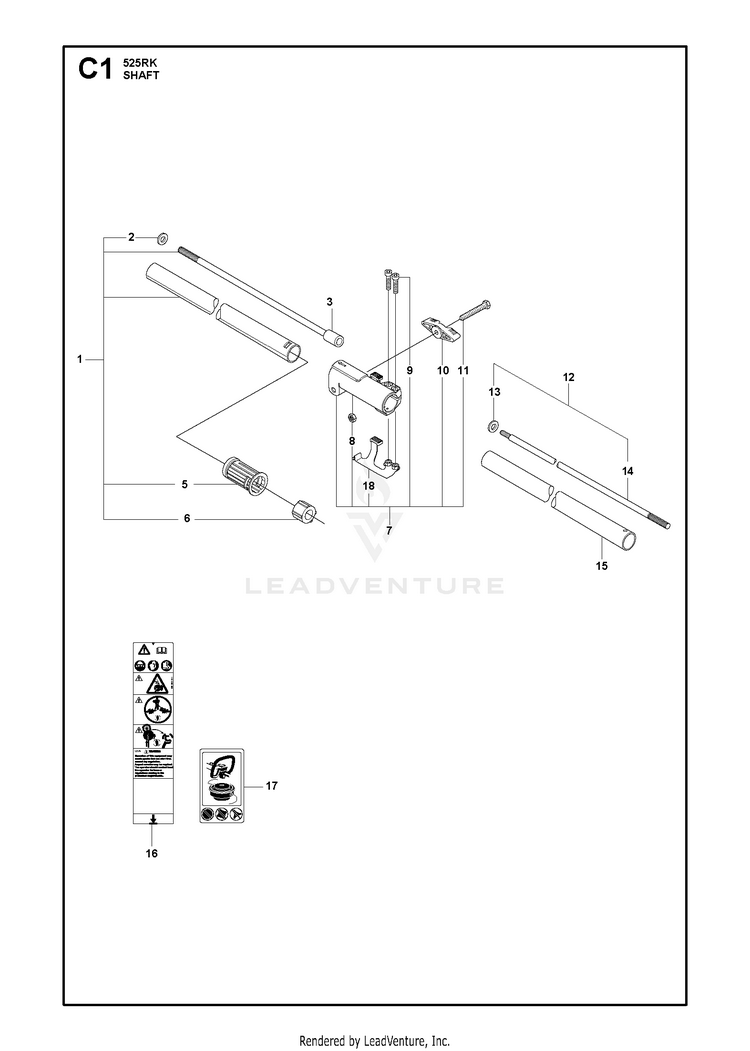

product name

SHAFT

...
...
1
TUBE COMP LOWER 525LDX HUS-579199501
...
10
KNOB CLAMPING SLEEVE HUS-576282401
...
14
DRIVE SHAFT L=696 Ø7mm HUS-581815102
...
5
PLUG HUS-587414601
...
9
SCREW HUS-525755104
...
15
TUBE COMP UPPER 525LDX L=650 Ø24mm HUS-579199401
...
7
CLAMPING SLEEVE ASSY HUS-576282601
...
13
WASHER HUS-735580810
...
6
BUSHING HUS-503785202
...
3
SHAFT L=843 Ø7mm HUS-587411701
...
17
DECAL WARNING "NO BLADES" HUS-503795601
...
18
LOCKING PLATE ASSY CLAMPING SL HUS-576282301
...
11
BOLT FLANGE HUS-725237651
...
8
NUT HUS-731231601
...
16
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
2
WASHER HUS-735580810
...
12
DRIVE SHAFT COMPL HUS-581500401
