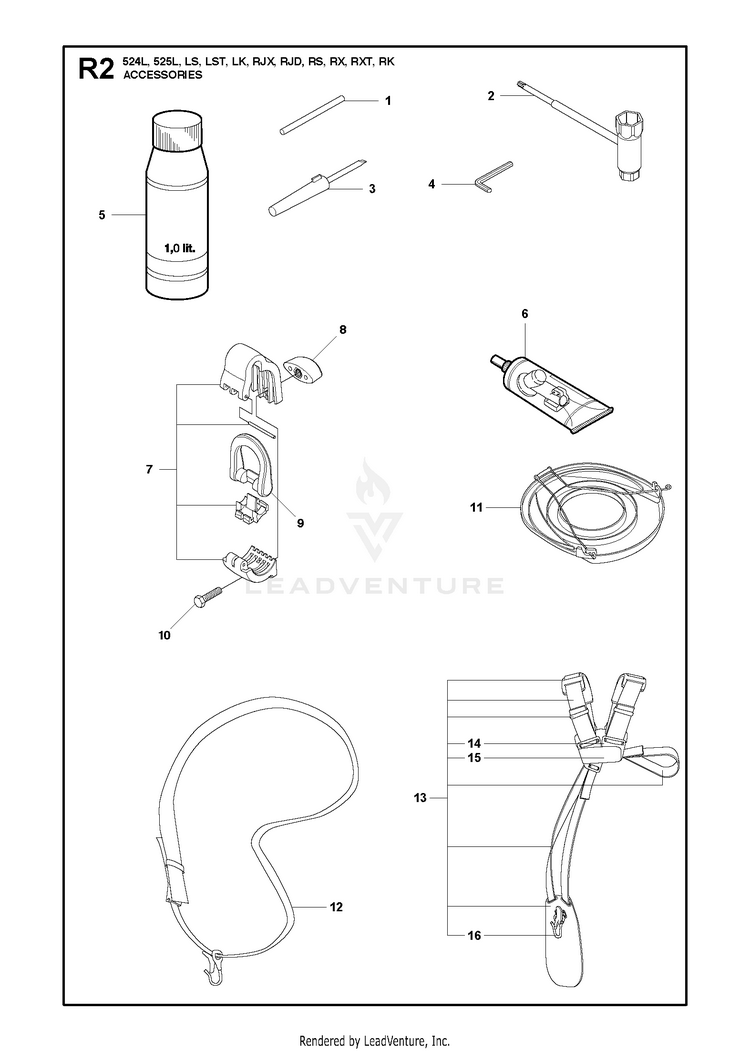

Husqvarna 525 RK Brushcutter/Clearing Saw

Model: 525 RK

Back To Assemblies

Save Part Not Listed?
product name

ACCESSORIES 2

...
...
10
SCREW M6S 5X20 HUS-725233151
...
15
STRAP HUS-503734102
...
6
BEVEL GEAR GREASE HUS-503976401
...
2
COMBINATION WRENCH TORX HUS-575738202
...
16
HOOK, CPL. HUS-502022802
...
12
Harness - Diagonal with sign USA HUS-537216202
...
4
L-KEY WRENCH HUS-502215801
...
13
HUS STANDARD HARNESS USA HUS-596296801
...
8
KNOB HUS-537130402
...
7
HANGING BRACKET HUS-537353601
...
5
HUS AIR FILTER OIL 1L / 33.8OZ HUS-596287501
...
14
BUCKLE HUS-503734001
...
9
HOOK HUS-537350101
...
11
BLADE GUARD TRANSPORT 200 - 275mm HUS-537312901
...
13
HARNESS DUO HUS-537216301
...
1
LOCKING PIN HUS-502285901
...
3
SCREWDRIVER HUS-501600203
...
12
Harness - Diagonal with sign HUS-537216202
