Husqvarna 525 RK Brushcutter/Clearing Saw

Model: 525 RK

Back To Assemblies

Save Part Not Listed?
product name

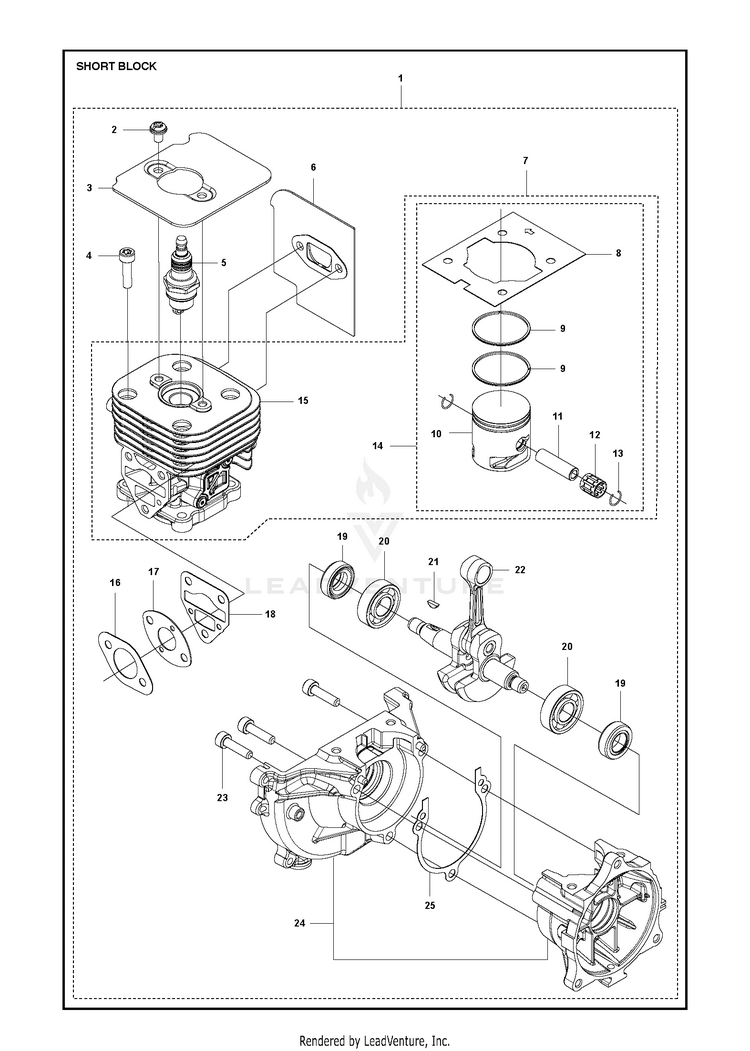

SHORT BLOCK

...
...
16
GASKET HUS-577882402
...
11
PIN HUS-505040701
...
9
RING HUS-506618101
...
20
BEARING HUS-506610301
...
2
SCREW HUS-544256801
...
4
BOLT TORX HUS-506689001
...
6
GASKET MUFFLER HUS-578408101
...
1
KIT SHORT BLOCK H525 W/PKG HUS-596940601
...
23
BOLT TORX HUS-506689001
...
24
CRANKCASE COMP HUS-581308602
...
14
SERVICE KIT PISTON 525 TRIMMER HUS-588098102
...
15
CYLINDER COMP HUS-577979001
...
3
PLATE CYLINDER HUS-578785301
...
5
SPARK PLUG HQT-2 RESISTOR HUS-590710101
...
7
KIT CYLINDER PISTON H525 W/PKG HUS-596940701
...
17
GASKET CARBURETOR HUS-576399102
...
18
GASKET HUS-576398901
...
12
BEARING HUS-576402701
...
19
SEAL HUS-504121501
...
22
Crankshafts HUS-586656602
...
13
RING HUS-505045201
...
21
KEY HUS-506689401
...
25
GASKET CASE HUS-576399502
...
10
PISTON HUS-577917401
...
8
GASKET BASE HUS-576398702
