Husqvarna 525 RK (2013-03) Brushcutters/Clearing Saws

Model: 525 RK (2013-03)

Back To Assemblies

Save Part Not Listed?

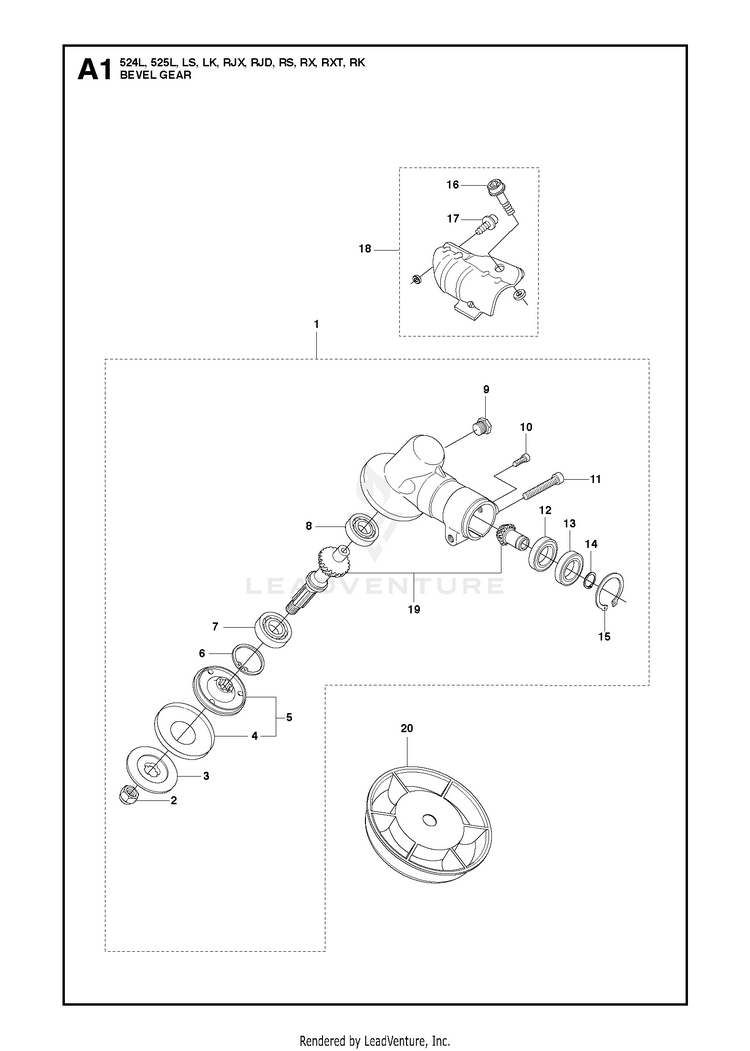

product name

BEVEL GEAR

...
...
1
BEVEL GEAR ASSY HUS-536503801
...
2
GEARHEAD NUT - BRUSHCUTTER . 1 HUS-503856301
...
3
SUPPORT FLANGE . 1 HUS-537285601
...
4
DRIVE DISC . 1 HUS-537234901
...
5
DRIVE DISC . 1 HUS-537234901
...
6
RETAINING RING SGH 28 . 1 HUS-735312810
...
7
HOLDER BALL BEARING . 1 HUS-525831801
...
8
BALL BEARING 8X22X7/608Z . 1 HUS-738219800
...
9
PLUG . 1 HUS-503201501
...
10
SCREW . 1 HUS-503201412
...
11
SCREW . 1 HUS-503200725
...
12
BALL BEARING 24X9X1/609ZR . 1 HUS-738219900
...
13
BEARING . 1 HUS-738219902
...
14
RETAINING RING . 1 HUS-735311100
...
15
RETAINING RING . 1 HUS-735312510
...
16
SCREW ITXSCM . 18 HUS-544218420
...
17
SCREW . 18 HUS-501981001
...
18
CLAMP HUS-574306903
...
19
BEVEL GEAR ASSY . 1 HUS-536503801
...
20
SUPPORTING CUP HUS-503890101
Schematic Image Zoomed
