Husqvarna 525 RK (2013-03) Brushcutters/Clearing Saws

Model: 525 RK (2013-03)

Back To Assemblies

Save Part Not Listed?
product name

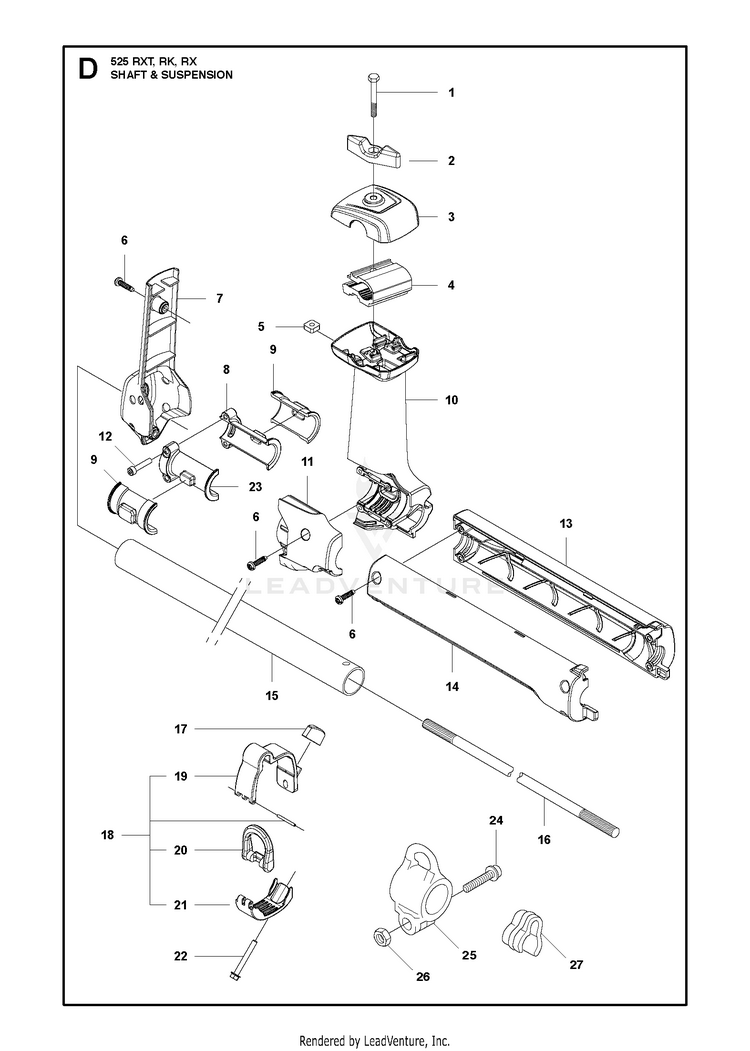

SHAFT HANDLE

...
...
1
SCREW EHHM M6x60 HUS-725238281
...
2
HANDLE HUS-502203801
...
3
CAP TOWER HUS-577558201
...
4
CLAMP HUS-544020901
...
5
NUT . 10 HUS-502197101
...
6
SCREW ITXSCT MT5X20 T27 12.9 HUS-525764604
...
7
COVER TOWER HUS-577558101
...
8
BRACKET (A) HUS-578139001
...
9
ABSORBER RXT RK HUS-578139201
...
9
Spacers RX HUS-585177601
...
10
HANDLE BAR BRACKET COMP HUS-578247701
...
11
COVER HANDLEBAR BRACKET HUS-577558001
...
12
SCREW HUS-525825001
...
13
WEAR PROTECTION RIGHT HUS-577557501
...
14
WEAR PROTECTION LEFT HUS-577557601
...
15
TUBE COMP RXT RX HUS-584977901
...
16
DRIVESHAFT RXT RX HUS-581815101
...
17
KNOB RXT RK HUS-537130402
...
18
Loop RXT RK HUS-578247801
...
19
CLAMP UPPER RXT RK. 18 HUS-577557701
...
20
HOOK RXT RK. 18 HUS-537350101
...
21
CLAMP LOWER RXT RK. 18 HUS-577557801
...
22
SCREW M6S 5X40 RXT RK HUS-725233951
...
23
BRACKET (B) HUS-578139101
...
24
SCREW RX HUS-525755101
...
25
HARNESS HOLDER RX HUS-503941001
...
26
NUT RX HUS-731231401
...
27
GROMMET RX HUS-502211201
