Husqvarna 525 RJX (2013-03) Brushcutters/Clearing Saws

Model: 525 RJX (2013-03)

Back To Assemblies

Save Part Not Listed?
product name

SHAFT HANDLE

...
...
1
HANDLE RJX (L LST RJD Australia) HUS-503997804
...
2
TUBE COMP L 1484 24mm HUS-584977901
...
3
BOLT L LS LST RJD M6x35 HUS-510906101
...
3
SCREW M6X50 RJX LK M6x50 HUS-725238051
...
4
KNOB RJX LK HUS-503879001
...
5
WASHER RJX LK HUS-503230061
...
6
HANDLE L LS LST RJX HUS-503871906
...
6
HANDLE LK RJD (LST Australia) HUS-503871908
...
7
SPACER PLASTIC HUS-503940301
...
8
SCREW RJX HUS-525755101
...
9
HARNESS HOLDER RJX HUS-503941001
...
10
NUT RJX HUS-731231401
...
11
SCREW IHSCFTO RJX (L LST RJD Australia) HUS-574181501
...
12
NUT HUS-502197101
...
13
DRIVESHAFT L 1515 7mm HUS-581815101
...
14
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
15
DECAL WARNING "NO BLADES" HUS-503795601
...
16
DECAL RJX HUS-537101001

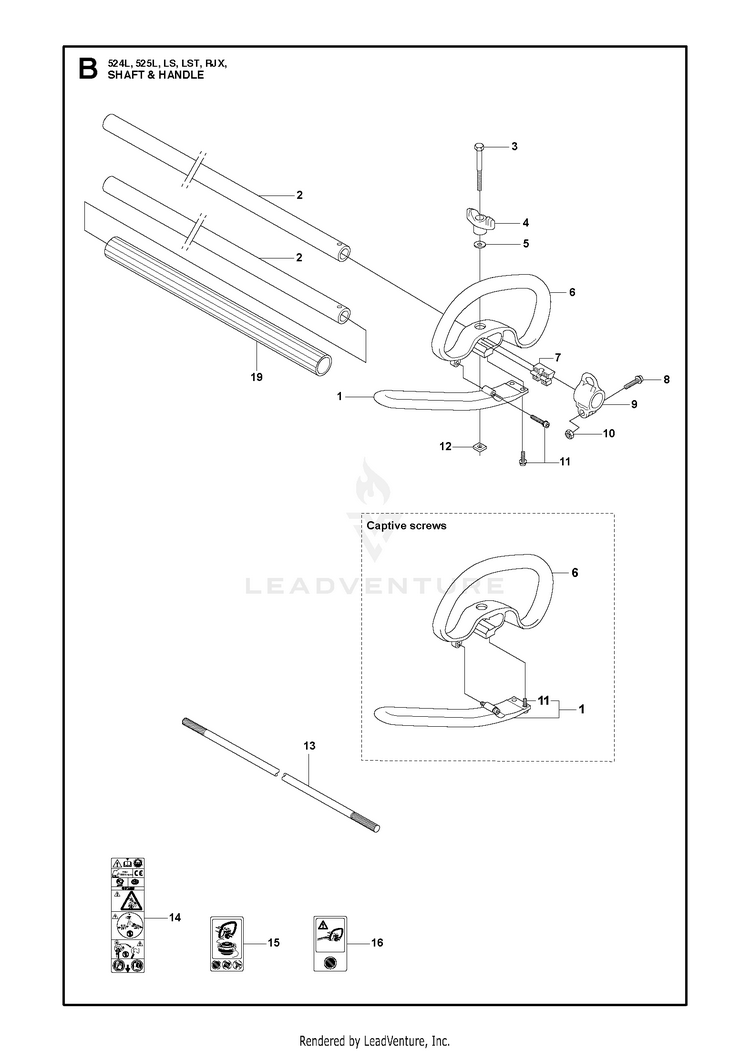

Schematic Image Zoomed
