Husqvarna 525 RJX (2013-03) Brushcutters/Clearing Saws

Model: 525 RJX (2013-03)

Back To Assemblies

Save Part Not Listed?
product name

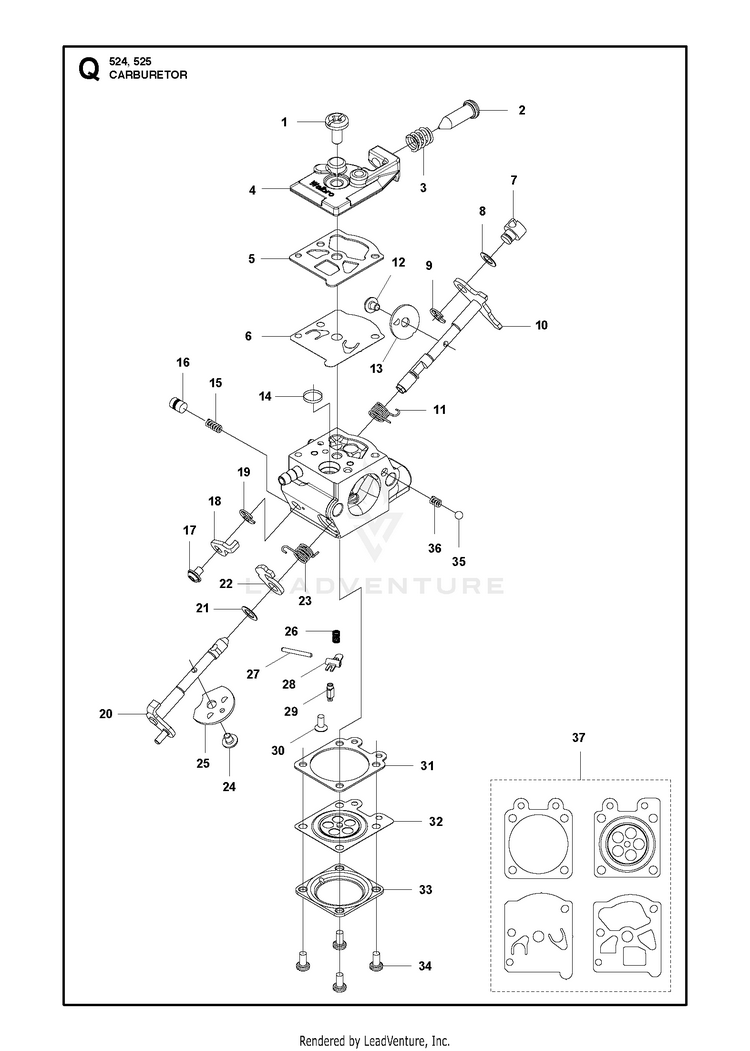

CARBURETOR

...
...
1
SCREW HUS-520976301
...
2
SCREW, IDLE HUS-577815701
...
3
SPRING HUS-513593201
...
4
COVER PUMP HUS-579190601
...
5
GASKET HUS-520954801
...
6
PUMP DIAPHRAGM HUS-504130807
...
7
SWIVEL HUS-513400801
...
8
WASHER HUS-516524201
...
9
RING HUS-516523601
...
10
SHAFT ASSEMBLY,THROTTLE HUS-579190701
...
11
SPRING HUS-577815501
...
12
SCREW HUS-520759801
...
13
VALVE HUS-520978601
...
14
RP_SCREEN (RPLS 331081380) HUS-574012501
...
15
SPRING HUS-505057901
...
16
PISTON HUS-521578301
...
17
SCREW HUS-520759801
...
18
LEVER THROTTLE HUS-579190801
...
19
E-RING HUS-505056501
...
20
SHAFT ASSEMBLY,CHOKE HUS-579191001
...
21
WASHER HUS-516524201
...
22
LEVER HUS-584901301
...
23
SPRING HUS-579191101
...
24
SCREW HUS-520759801
...
25
VALVE HUS-581154901
...
26
SPRING HUS-578895401
...
27
PIN HUS-520977401
...
28
LEVER HUS-577807201
...
29
VALVE INLET HUS-521085401
...
30
SCREW HUS-577807101
...
31
GASKET HUS-516972101
...
32
DIAPHRAGM HUS-577807001
...
33
COVER HUS-514189201
...
34
SCREW ASSY HUS-520978801
...
35
BALL HUS-514242601
...
36
CHOKE SPRING HUS-514243301
...
37
GASKET KIT Coomopes by item 5 6 31 and 32 HUS-580684801
