Husqvarna 525 RJX (2013-03) Brushcutters/Clearing Saws

Model: 525 RJX (2013-03)

Back To Assemblies

Save Part Not Listed?
product name

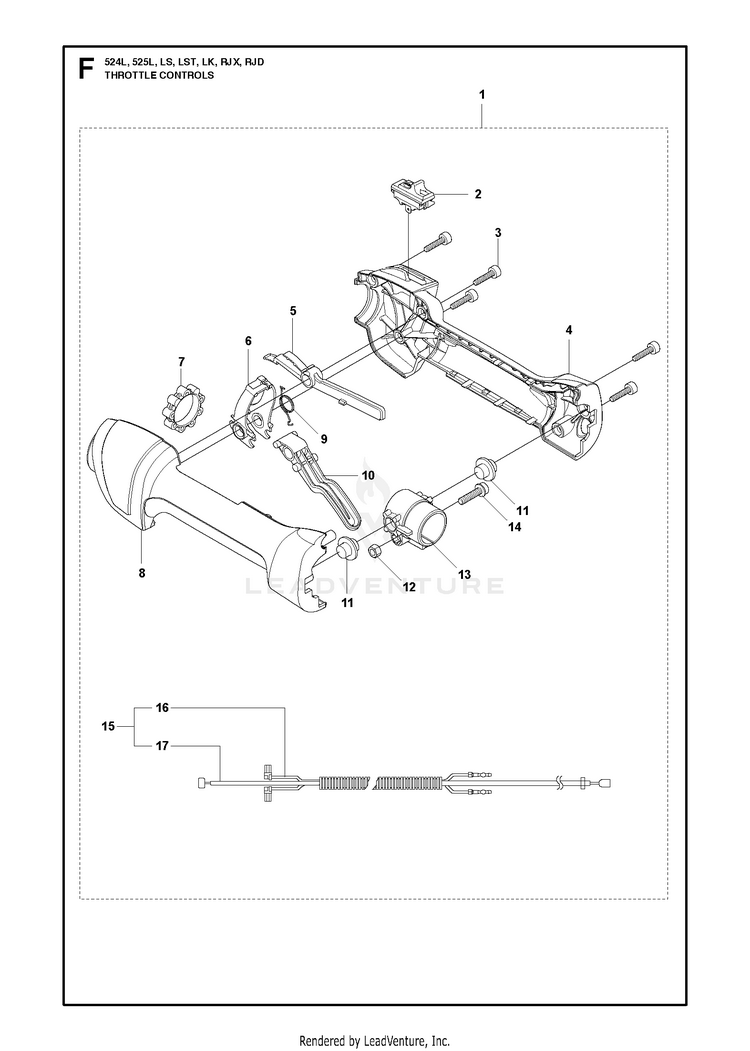

THROTTLE CONTROLS

...
...
1
THROTTLE CONTROL L LS LST RJX HUS-578279501
...
1
THROTTLE CONTROL ASSY LK RJD (LST Australia) HUS-578279502
...
2
STOP BUTTON . 1 HUS-537419001
...
3
SCREW . 1 HUS-575960501
...
4
HANDLE L LS LST RJX. 1 HUS-544238401
...
4
HANDLE LK RJD (LST Australia). 1 HUS-544100202
...
5
THROTTLE LOCK . 1 HUS-503878001
...
6
LEVER . 1 HUS-503918101
...
7
VIBRATION DAMPER . 1 HUS-503961401
...
8
HANDLE L LS LST RJX. 1 HUS-544238501
...
8
HANDLE LK RJD (LST Australia). 1 HUS-544100302
...
9
RETURN SPRING . 1 HUS-544100801
...
10
THROTTLE TRIGGER . 1 HUS-503877903
...
11
VIBRATION ABSORBER L LS LST RJX. 1 HUS-544101702
...
11
VIBRATION ABSORBER LK RJD (LST Australia). 1 HUS-544101702
...
12
NUT . 1 HUS-731231401
...
13
HOLDER . 1 HUS-544112101
...
14
BOLT TORX . 1 HUS-506689001
...
15
WIRING ASSY . 1 HUS-578279601
...
16
SHORT CIRCUIT CABLE . 1 15 HUS-502531601
...
17
THROTTLE CABLE . 1 15 HUS-578867801
