product name

Husqvarna 525 RJD Brushcutter/Clearing Saw

Model: 525 RJD

Back To Assemblies

Save Part Not Listed?

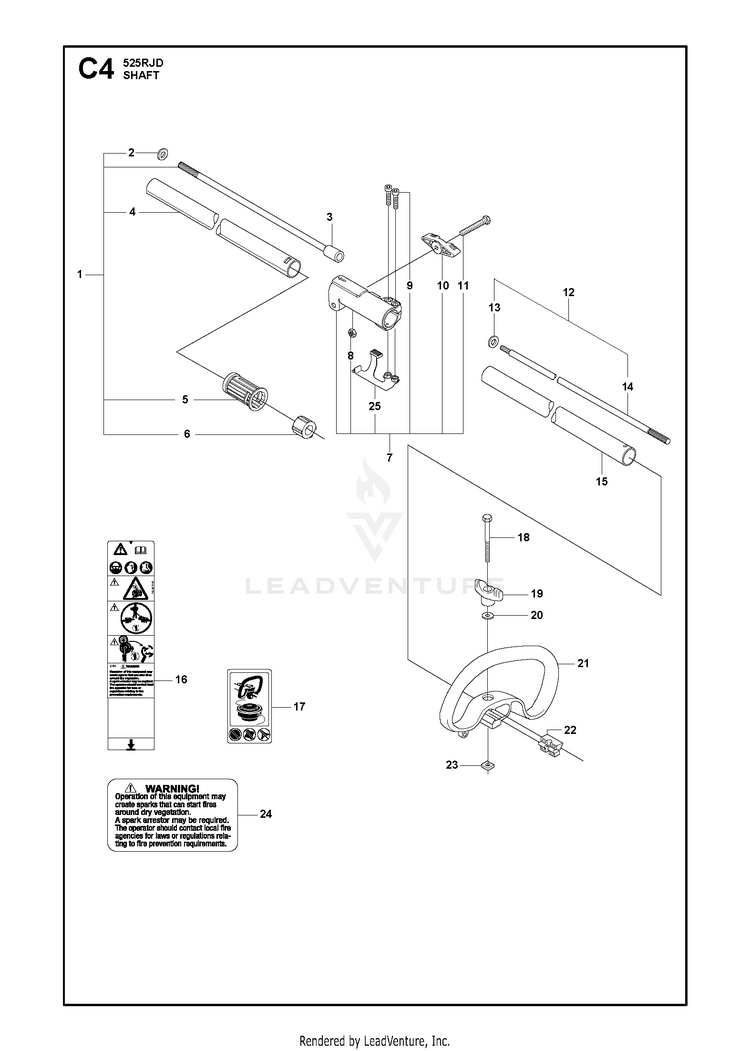

product name

SHAFT

...
...
25
LOCKING PLATE ASSY CLAMPING SL HUS-576282301
...
8
NUT HUS-731231601
...
20
WASHER LK HUS-503230061
...
15
L=650 Ø24mm HUS-584249001
...
10
KNOB CLAMPING SLEEVE HUS-576282401
...
22
SPACER PLASTIC HUS-503940301
...
4
L=829 Ø24mm HUS-584249401
...
18
SCREW M6X50 LK M6x50 HUS-725238051
...
16
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
24
DECAL SPARK ARRESTOR WARNING HUS-522928602
...
9
SCREW HUS-525755104
...
12
DRIVE SHAFT COMPL HUS-581500401
...
19
KNOB LK HUS-503879001
...
2
WASHER HUS-735580810
...
14
DRIVE SHAFT L=696 Ø7mm HUS-581815102
...
13
WASHER HUS-735580810
...
5
PLUG HUS-587414601
...
7
CLAMPING SLEEVE ASSY HUS-576282601
...
18
BOLT RJD, (LK USA) M6x35 HUS-510906101
...
1
Tubes HUS-584249301
...
21
HANDLE HUS-503871908
...
23
NUT HUS-502197101
...
11
BOLT FLANGE HUS-725237651
...
3
SHAFT L=843 Ø7mm HUS-587411701
...
6
BUSHING HUS-503785202
...
17
DECAL WARNING "NO BLADES" HUS-503795601
