Husqvarna 525 RJD Brushcutter/Clearing Saw

Model: 525 RJD

Back To Assemblies

Save Part Not Listed?
product name

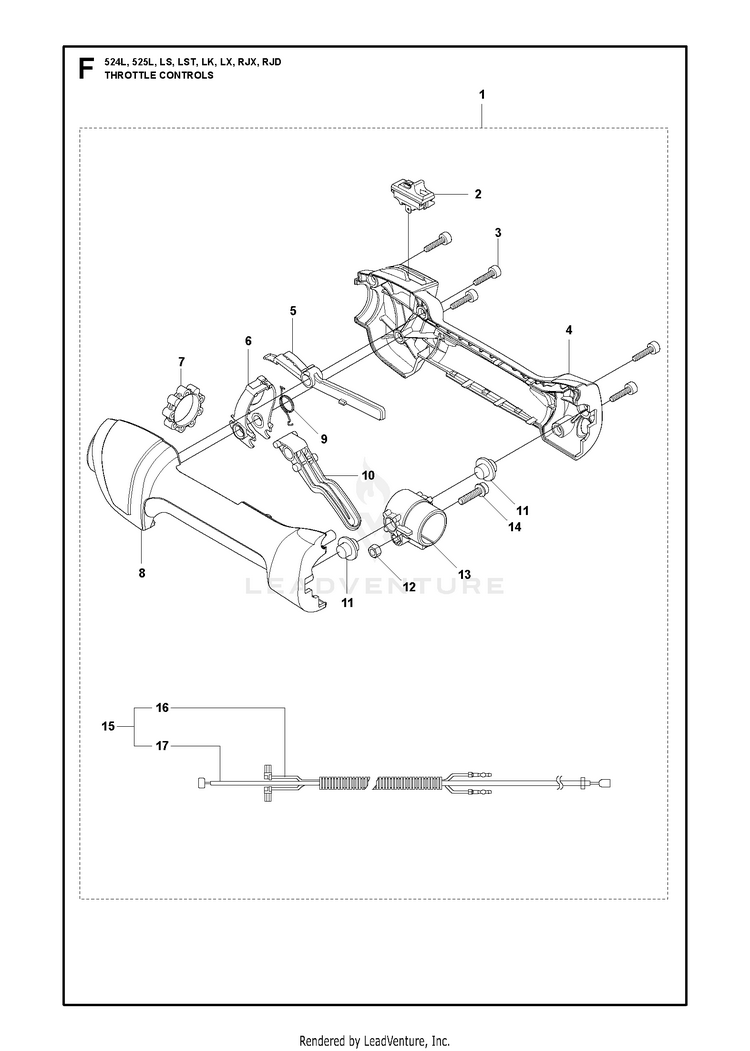

THROTTLE CONTROLS

...
...
5
THROTTLE LOCK HUS-503878001
...
3
SCREW HUS-575960501
...
11
VIBRATION ABSORBER LK, RJD, (LST Australia) HUS-544101702
...
6
LEVER HUS-503918101
...
17
THROTTLE CABLE HUS-578867801
...
8
HANDLE LK, RJD, (LST Australia) HUS-544100302
...
12
NUT HUS-731231401
...
15
WIRING ASSY HUS-578279601
...
1
THROTTLE CONTROL ASSY LK, RJD, (LST Australia) HUS-578279502
...
13
HOLDER HUS-544112101
...
4
HANDLE LK, RJD, (LST Australia) HUS-544100202
...
2
STOP BUTTON HUS-537419001
...
14
BOLT TORX HUS-506689001
...
10
THROTTLE TRIGGER HUS-503877903
...
7
VIBRATION DAMPER HUS-503961401
...
9
RETURN SPRING HUS-544100801
...
16
SHORT CIRCUIT CABLE HUS-502531601
