Husqvarna 525 RJD Brushcutter/Clearing Saw

Model: 525 RJD

Back To Assemblies

Save Part Not Listed?
product name

ACCESSORIES 2

...
...
10
BLADE HUS-503798802
...
6
SCREW HUS-503200316
...
5
BLADE GUARD HUS-574532601
...
13
BLADE HUS-503798802
...
9
SCREW ITXSCFT PW4.8X16 T27 CH HUS-576275601
...
2
SCREW IHSCFMO HUS-573994304
...
4
ADAPTER HUS-537293401
...
3
CLAMP HUS-537047501
...
11
COMBINATION GUARD HUS-588117901
...
12
SCREW ITXSCFT PW4.8X16 T27 CH HUS-576275601
...
8
TRIMMER GUARD 323L MFL. HUS-588543701
...
1
ACCESSORY BAG RX, RXT, RK HUS-544044210
...
7
LOCKING NUT HUS-574039501

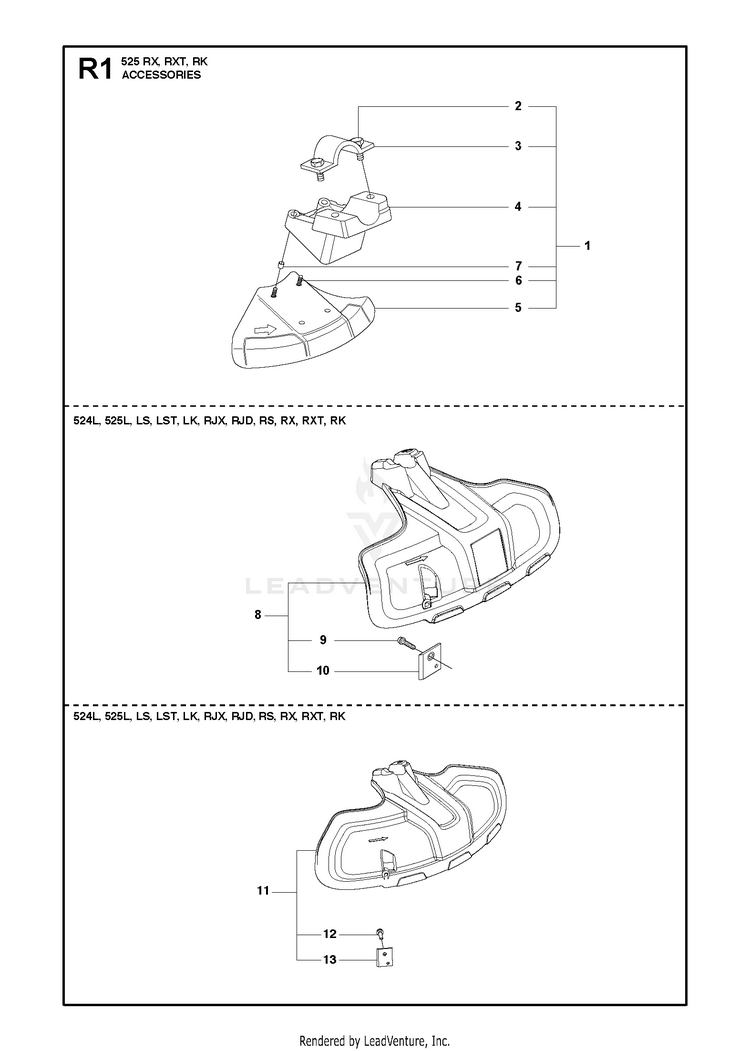

Schematic Image Zoomed
