Husqvarna 525 LX Trimmer/Edger

Model: 525 LX

Back To Assemblies

Save Part Not Listed?
product name

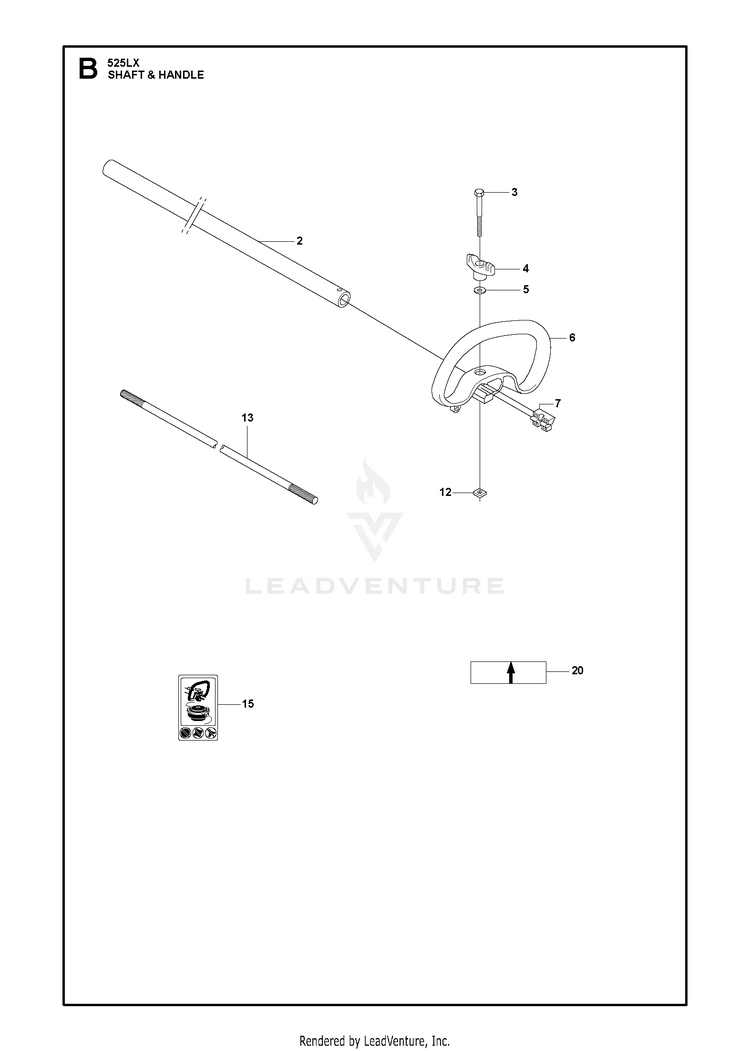

SHAFT & HANDLE 2

...
...
15
DECAL WARNING "NO BLADES" HUS-503795601
...
5
WASHER HUS-503230061
...
4
KNOB HUS-503879001
...
7
SPACER PLASTIC HUS-503940301
...
13
DRIVESHAFT L=1515 Ø7mm HUS-581815101
...
2
TUBE COMP L=1483 ø24mm HUS-584977901
...
12
NUT HUS-502197101
...
20
LABEL HUS-505295801
...
3
SCREW M6X50 HUS-725238051
...
6
HANDLE HUS-503871908
