product name

Husqvarna 525 ES Trimmer/Edger

Model: 525 ES

Back To Assemblies

Save Part Not Listed?

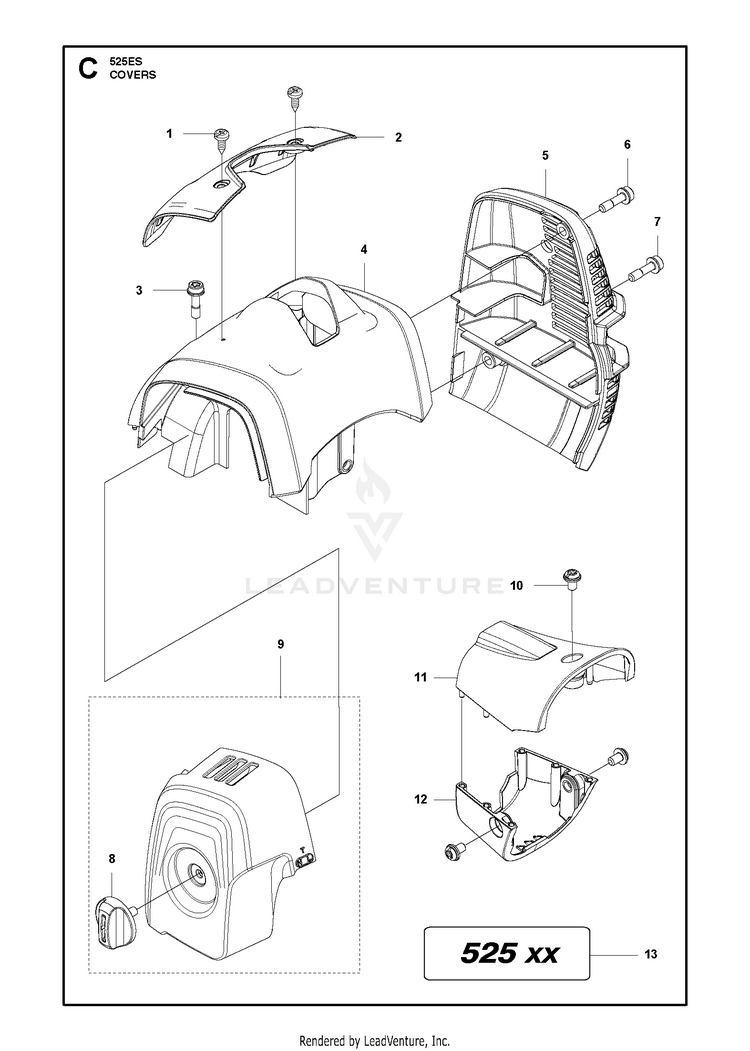

product name

COVER

...
...
1
SCREW HUS-503213512
...
4
Cylinder To be used with 576404101 Housing clutch HUS-592621301
...
11
COVER CLUTCH HOUSING,UPPER HUS-577848201
...
7
BOLT HUS-577815402
...
13
NEEDS DESCRIPTION 525ES HUS-579445812
...
4
CYLINDER COVER To be used with 588567701 Housing clutch HUS-592621302
...
5
MUFFLER GUARD COVER HUS-597672101
...
9
FILTER COVER ASSY HUS-578408801
...
3
BOLT HUS-577815402
...
10
SCREW HUS-544256801
...
8
KNOB CLEANER COLOR:GREY HUS-576992402
...
12
COVER CLUTCH HOUSING,LOWER HUS-577848101
...
6
BOLT HUS-577815402
...
2
ARM PROTECTION HUS-576404501
