Husqvarna 525 ES Trimmer/Edger

Model: 525 ES

Back To Assemblies

Save Part Not Listed?
product name

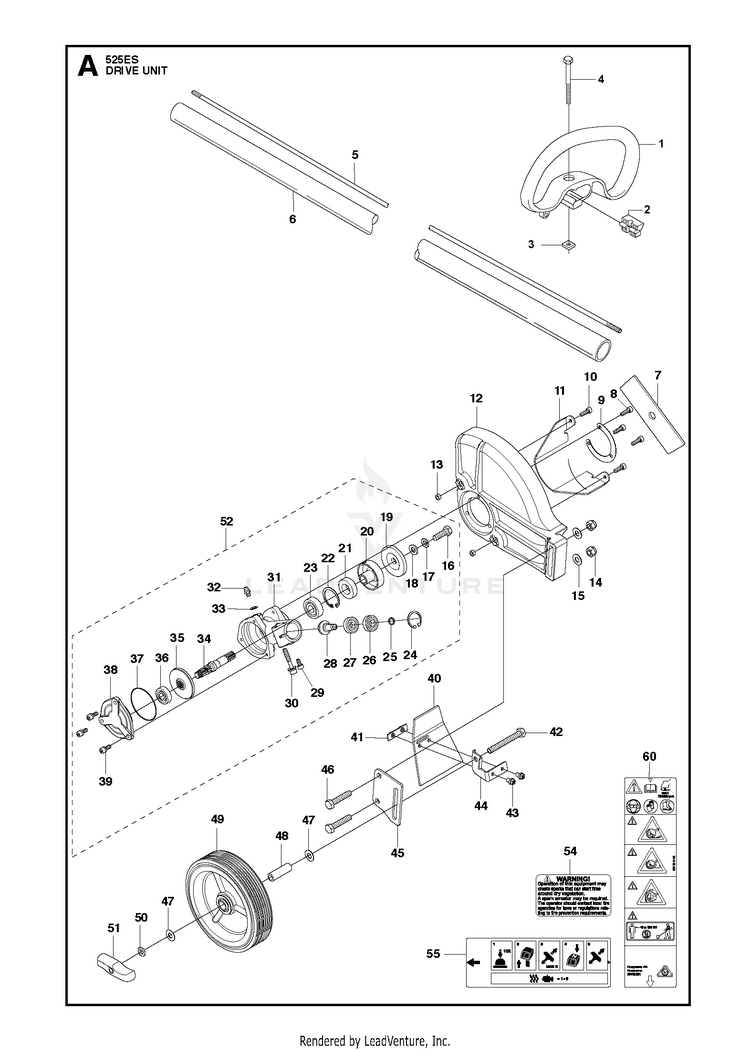

DRIVE

...
...
41
PLATE HUS-505173601
...
2
SPACER PLASTIC HUS-503940301
...
46
BOLT M8 X L40 HUS-505174701
...
37
O-RING HUS-505168501
...
23
BEARING HUS-505168601
...
11
PROTECTIVE PLATE HUS-505172003
...
54
DECAL SPARK ARRESTOR WARNING HUS-522928602
...
42
BOLT M8 X L65 HUS-505172601
...
49
WHEEL HUS-505172501
...
18
WASHER HUS-505169801
...
29
BOLT HUS-521516101
...
1
HANDLE HUS-503871906
...
8
Screws HUS-596876101
...
28
PINION HUS-505169101
...
25
RING HUS-505169501
...
40
RUBBER HUS-505173701
...
52
GEAR CASE ASSY HUS-588163001
...
38
COVER HUS-505170101
...
43
BOLT HUS-521516101
...
9
PLATE HUS-505171901
...
20
HOLDER (A) HUS-505171201
...
12
Guards HUS-505171702
...
4
BOLT HUS-510906101
...
3
NUT HUS-502197101
...
30
BOLT,TORX HUS-521862401
...
19
HOLDER (B) HUS-505171401
...
15
WASHER HUS-505173001
...
45
MAIN BRACKET HUS-505174601
...
7
EDGER BLADE (IN CLAM) HUS-531300233
...
55
DECAL START REMINDER 523/525 HUS-579562301
...
21
OIL SEAL HUS-505168701
...
47
WASHER HUS-505173001
...
14
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
26
BEARING HUS-505169301
...
17
WASHER HUS-505169701
...
22
RING HUS-504121001
...
27
BEARING HUS-505169201
...
32
FITTING HUS-505171501
...
39
SCREW HUS-575701001
...
34
SHAFT HUS-505168901
...
10
BOLT HUS-506745601
...
13
NUT HUS-505172301
...
16
BOLT M8 X L25 L/H HUS-505169601
...
35
GEAR HUS-505169001
...
24
RP_RING HUS-505169401
...
36
BEARING HUS-505170201
...
53
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
51
NUT HUS-527068601
...
33
WASHER HUS-505171601
...
48
SLEEVE HUS-505173301
...
5
DRIVESHAFT HUS-581110502
...
44
BRACKET HUS-505173501
...
6
TUBE COMP HUS-579149002
...
31
GEARCASE HUS-505168401
...
50
WASHER HUS-505172901
