Husqvarna 525 ECS Trimmer/Edger

Model: 525 ECS

Back To Assemblies

Save Part Not Listed?
product name

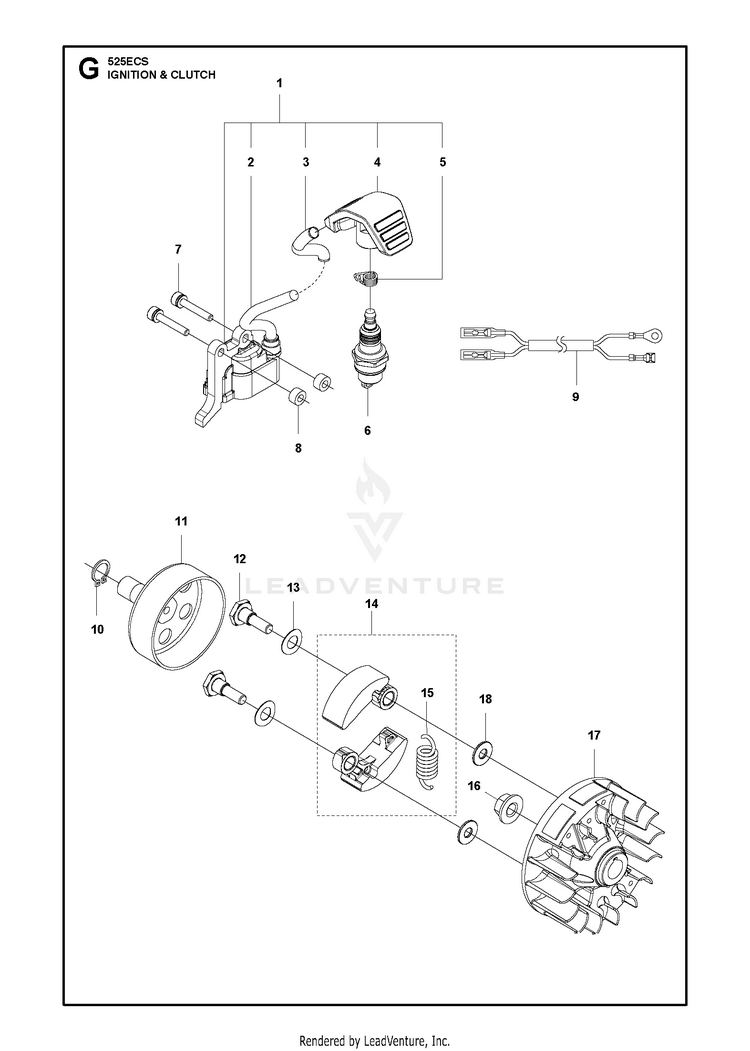

IGNITION SYSTEM & CLUTCH

...
...
8
SPACER HUS-588171401
...
2
IGNITION CABLE HUS-584826601
...
6
SPARK PLUG HQT-2 RESISTOR Husqvarna HQT-2 HUS-590710101
...
13
WASHER HUS-521758201
...
17
FLYWHEEL HUS-578967801
...
16
NUT(RPLS 1140-43230&182301) HUS-516437401
...
18
WASHER HUS-505054401
...
1
IGNITION COIL HUS-587294701
...
9
SHORT CIRCUIT CABLE HUS-577851701
...
14
CLUTCH ASSY HUS-585834701
...
10
RING HUS-516124101
...
12
SCREW HUS-513189601
...
7
BOLT M4 X 25 HUS-521515801
...
3
TUBE HUS-579590701
...
15
CLUTCH SPRING HUS-576400701
...
11
CLUTCH DRUM HUS-578986301
...
5
SPRING HUS-580634801
...
4
SPARK PLUG CAP HUS-586107201
