Husqvarna 525 ECS Trimmer/Edger

Model: 525 ECS

Back To Assemblies

Save Part Not Listed?
product name

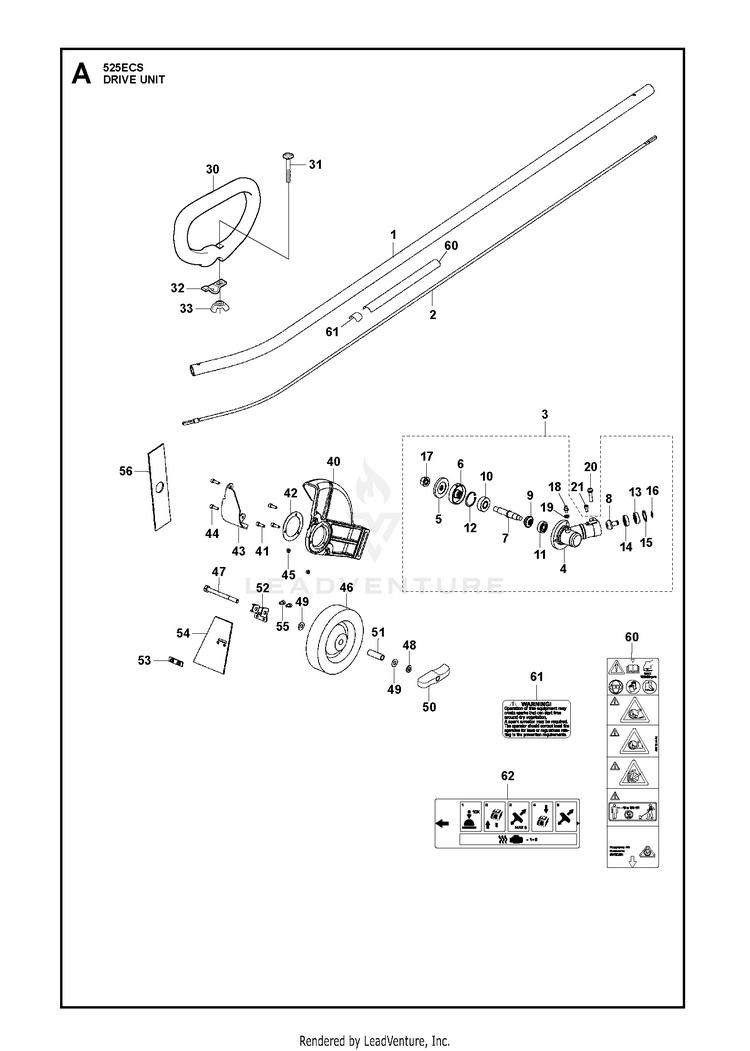

DRIVE

...
...
44
BOLT HUS-506745601
...
61
DECAL SPARK ARRESTOR WARNING HUS-522928602
...
30
HANDLE, LOOP HUS-537076801
...
13
BEARING HUS-505169301
...
41
Screws HUS-596876101
...
10
BEARING*** HUS-510569701
...
7
SHAFT GEAR HUS-588221301
...
31
SCREW HUS-503219835
...
51
SLEEVE HUS-505173301
...
49
WASHER HUS-505173001
...
45
NUT HUS-505172301
...
42
PLATE HUS-505171901
...
2
FLEX SHAFT HUS-526058601
...
5
HOLDER(B) HUS-515537501
...
4
GEARCASE HUS-512556001
...
21
BOLT HUS-529268101
...
43
PROTECTIVE PLATE HUS-505172003
...
52
BRACKET HUS-526059501
...
8
PINION HUS-512556101
...
12
RING HUS-504121001
...
20
BOLT HUS-576590701
...
3
GEARCASE ASSY HUS-588221401
...
47
BOLT HUS-526059601
...
19
WASHER HUS-505171601
...
40
Guards HUS-505171702
...
54
RUBBER HUS-505173701
...
60
DECAL HUS-588184401
...
11
BEARING HUS-515537001
...
56
EDGER BLADE (IN CLAM) HUS-531300233
...
33
WING NUT HUS-503222601
...
32
CLAMP HUS-530038599
...
53
PLATE HUS-505173601
...
15
RP_RING HUS-505169401
...
18
FITTING HUS-505171501
...
55
SCREW HUS-578473501
...
46
WHEEL HUS-505172501
...
48
WASHER HUS-505172901
...
16
RING HUS-521821801
...
17
NUT HUS-521804001
...
14
BEARING HUS-505169201
...
50
NUT HUS-527068601
...
62
DECAL START REMINDER 523/525 HUS-579562301
...
1
PIPE COMP HUS-526058301
...
9
GEAR HUS-515537301
...
6
HOLDER(A) HUS-515537401
