Husqvarna 525 BX BLOWERS

Model: 525 BX

Back To Assemblies

Save Part Not Listed?

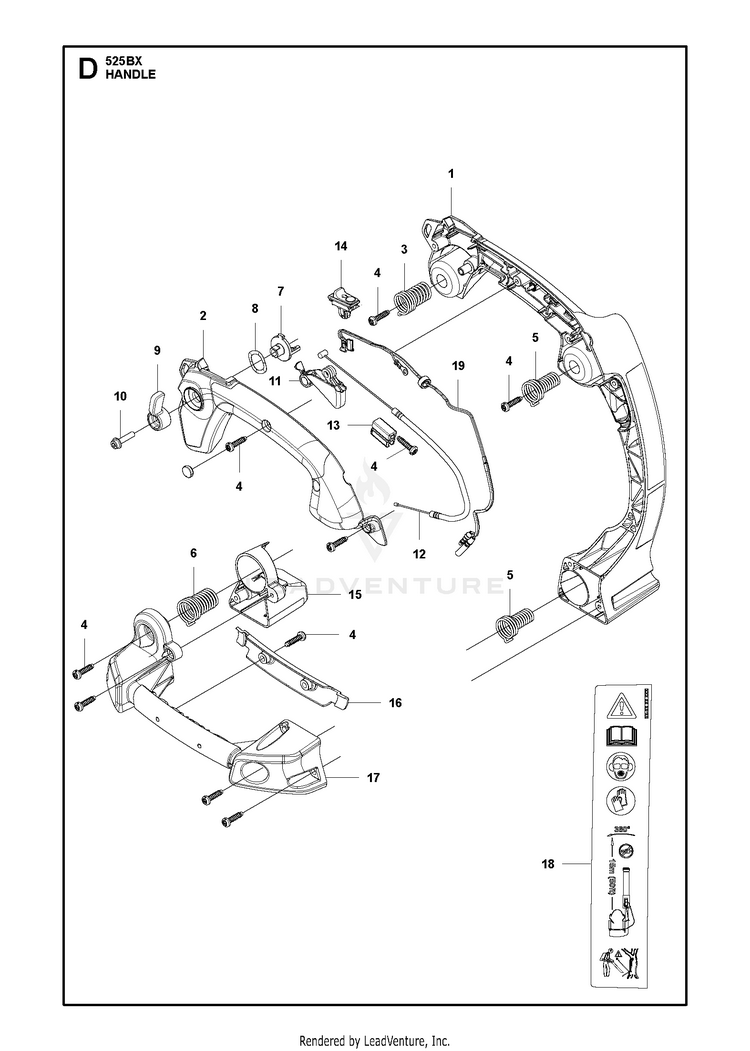

product name

HANDLE

...
...
5
SPRING HUS-585623902
...
15
HANDLE SUPPORT REAR HUS-585624301
...
4
SCREW, TORX (RPLS T4970-52001) HUS-521863601
...
12
THROTTLE CABLE HUS-585625001
...
14
STOP BUTTON HUS-537419001
...
1
HANDLE RIGHT HUS-585624001
...
2
HANDLE LEFT HUS-585624101
...
18
LABEL WARNING HUS-587243001
...
7
RATCHET HUS-585624701
...
9
CONTROL LEVER HUS-585624601
...
17
HANDLE SUPPORT HUS-585624201
...
8
WASHER HUS-585624801
...
19
CORD COMP HUS-582863602
...
16
HANDLE SUPPORT COVER HUS-585624401
...
10
BOLT HUS-506745201
...
6
SPRING HUS-587110302
...
13
ADJUSTER HUS-585625101
...
3
SPRING HUS-587110402
...
11
THROTTLE LEVER HUS-585624501
