Husqvarna 524 R (2020-11) Brushcutter/Clearing Saw

Model: 524 R (2020-11)

Back To Assemblies

Save Part Not Listed?
product name

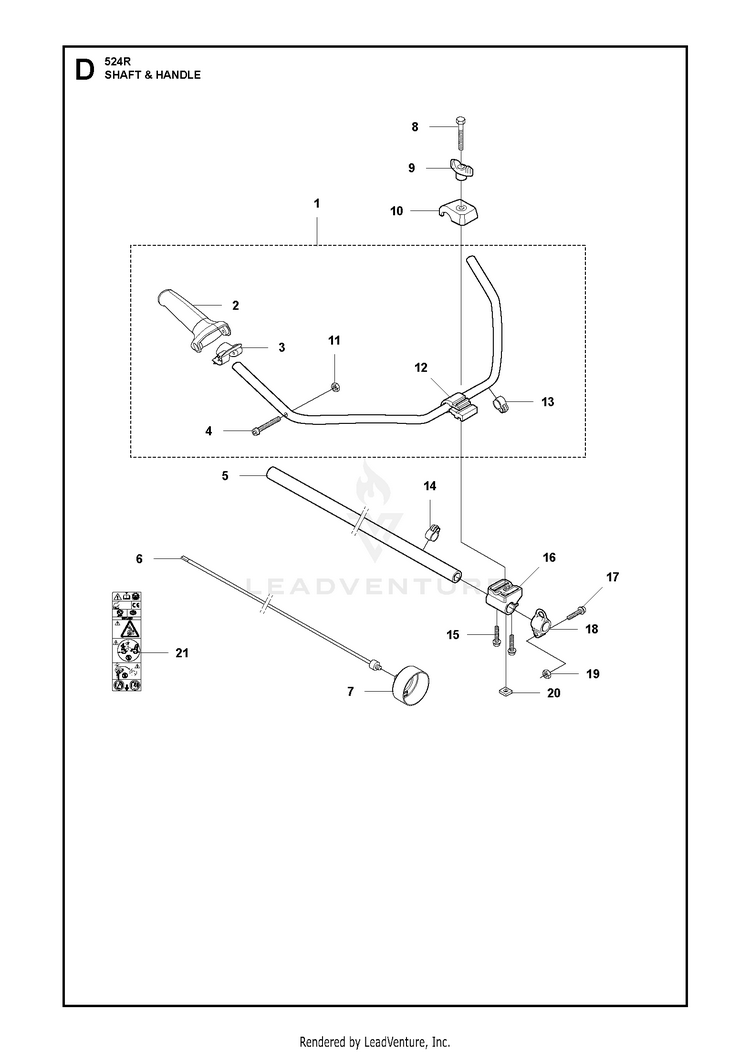

SHAFT & HANDLE

...
...
4
SCREW HUS-503200245
...
21
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
14
CLAMP HUS-521539201
...
15
SCREW HUS-503217525
...
8
SCREW HUS-725238651
...
3
BRACKET HUS-537172901
...
19
NUT HUS-731231401
...
7
CLUTCH DRUM HUS-537311101
...
12
HOLDER HUS-544020903
...
16
HOLDER HUS-503882301
...
6
DRIVE SHAFT HUS-503864501
...
10
BRACKET HUS-503722901
...
20
NUT HUS-502197101
...
17
SCREW HUS-525755101
...
11
NUT HUS-731231401
...
9
HANDLE HUS-502203801
...
5
DRIVE TUBE ASSEMBLY HUS-503888801
...
13
CLAMP HUS-521539201
...
1
HANDLE HUS-503724309
...
2
HANDLE HUS-537172801
...
18
HARNESS HOLDER HUS-503941001
