Husqvarna 524 R (2020-11) Brushcutter/Clearing Saw

Model: 524 R (2020-11)

Back To Assemblies

Save Part Not Listed?
product name

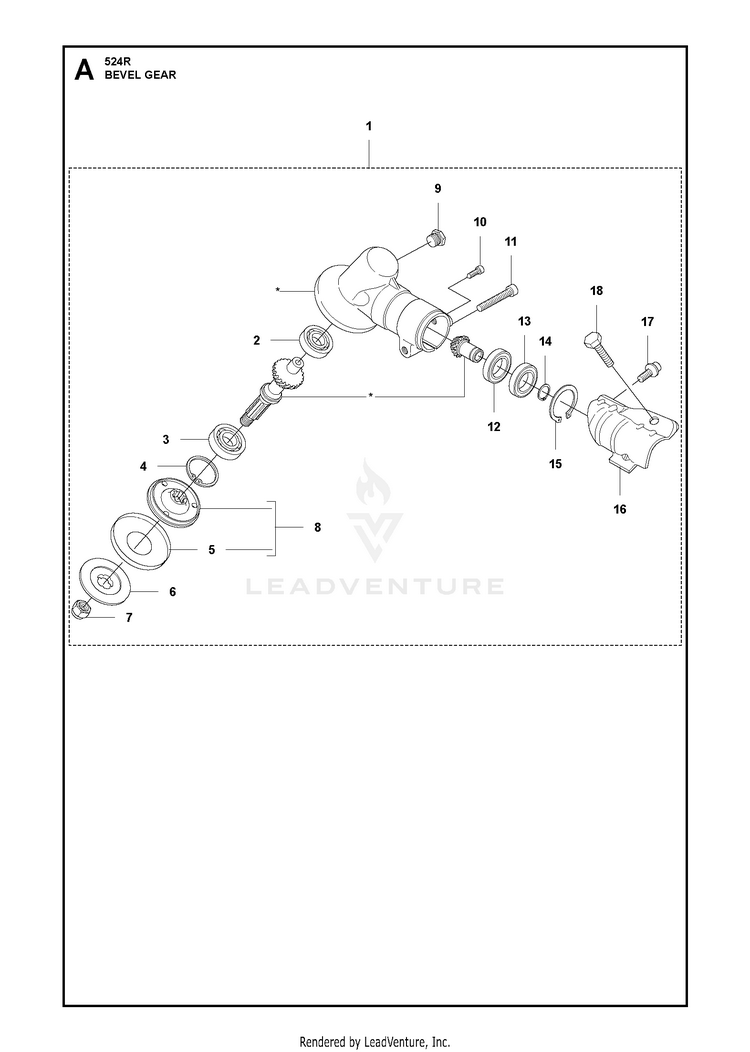

BEVEL GEAR

...
...
3
HOLDER BALL BEARING HUS-525831801
...
18
SCREW HUS-725237071
...
14
RETAINING RING HUS-735311100
...
16
CLAMP HUS-574306904
...
9
PLUG HUS-503201501
...
17
SCREW HUS-503200712
...
11
SCREW HUS-503200725
...
15
RETAINING RING HUS-735312510
...
5
DRIVE DISC HUS-537234901
...
7
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
1
BEVEL GEAR ASSY HUS-536503801
...
10
SCREW HUS-503201412
...
13
BEARING HUS-738219902
...
4
RETAINING RING SGH 28 HUS-735312810
...
8
DRIVE DISC HUS-537234901
...
6
SUPPORT FLANGE HUS-537285601
...
2
BALL BEARING 8X22X7/608Z HUS-738219800
...
12
BALL BEARING 24X9X1/609ZR HUS-738219900
