Husqvarna 524 R (2020-11) Brushcutter/Clearing Saw

Model: 524 R (2020-11)

Back To Assemblies

Save Part Not Listed?
product name

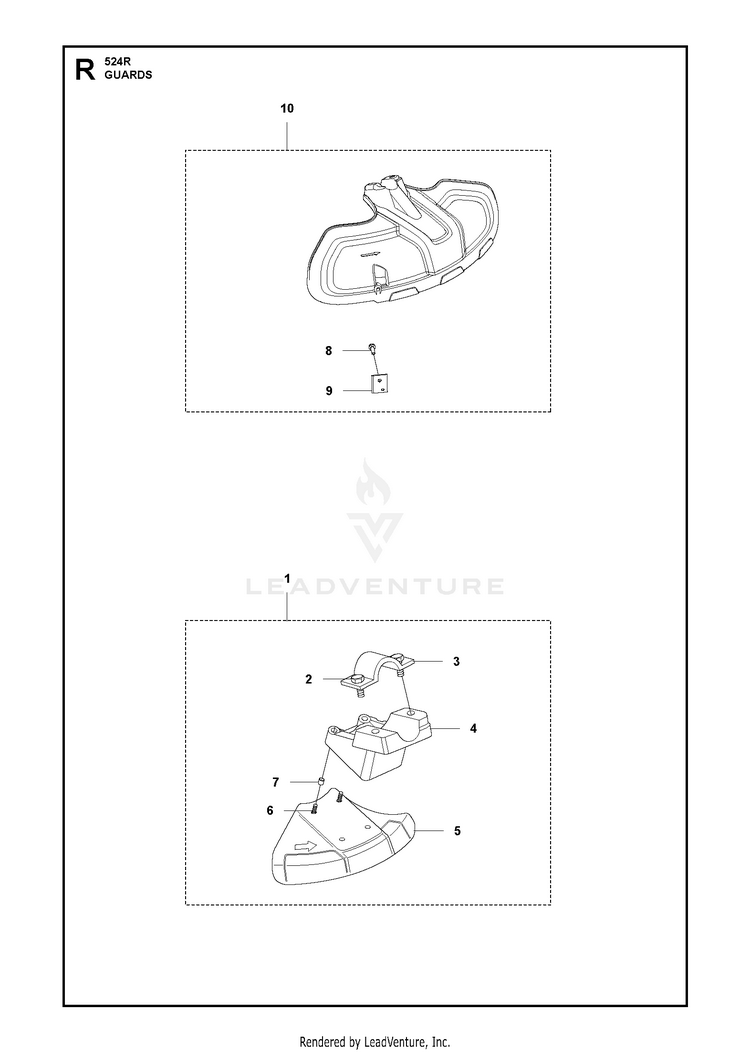

GUARDS

...
...
3
CLAMP ASSY HUS-574568001
...
4
ADAPTER HUS-537293401
...
5
BLADE GUARD HUS-574532601
...
1
ACCESSORY BAG HUS-544044210
...
7
LOCKING NUT HUS-574039501
...
10
COMBINATION GUARD HUS-588117901
...
8
SCREW ITXSCFT PW4.8X16 T27 CH HUS-576275601
...
2
SCREW IHSCFMO HUS-573994304
...
9
BLADE HUS-503798802
...
6
SCREW HUS-503200216
Schematic Image Zoomed
