Husqvarna 524 R (2020-11) Brushcutter/Clearing Saw

Model: 524 R (2020-11)

Back To Assemblies

Save Part Not Listed?
product name

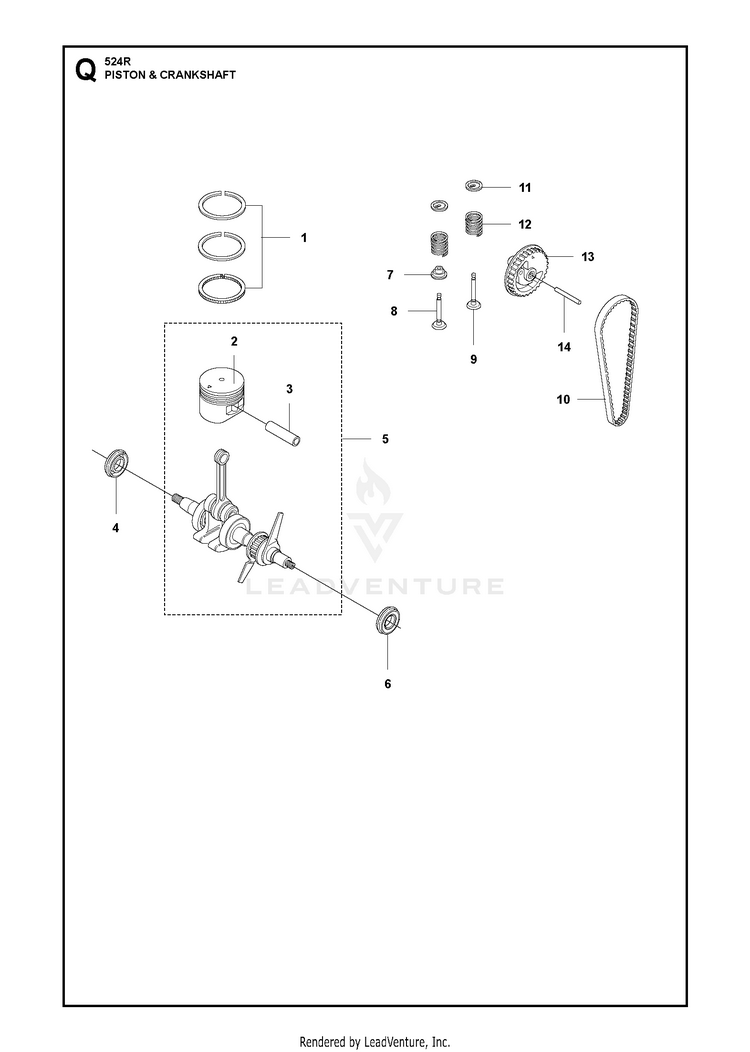

PISTON & CRANKSHAFT

...
...
12
SPRING HUS-531008639
...
6
SEALING RING HUS-531008632
...
14
SHAFT HUS-531008634
...
8
VALVE HUS-531008637
...
10
BELT HUS-531008636
...
3
PISTON BOLT HUS-531008629
...
1
PISTON RING HUS-531008627
...
2
PISTON HUS-531008628
...
13
WHEEL HUS-531008635
...
5
CRANKSHAFT HUS-531008630
...
7
SEALING HUS-531008633
...
4
SEALING RING HUS-531008631
...
9
VALVE HUS-531008638
...
11
RETAINER HUS-531008640
