Husqvarna 524 R (2020-11) Brushcutter/Clearing Saw

Model: 524 R (2020-11)

Back To Assemblies

Save Part Not Listed?
product name

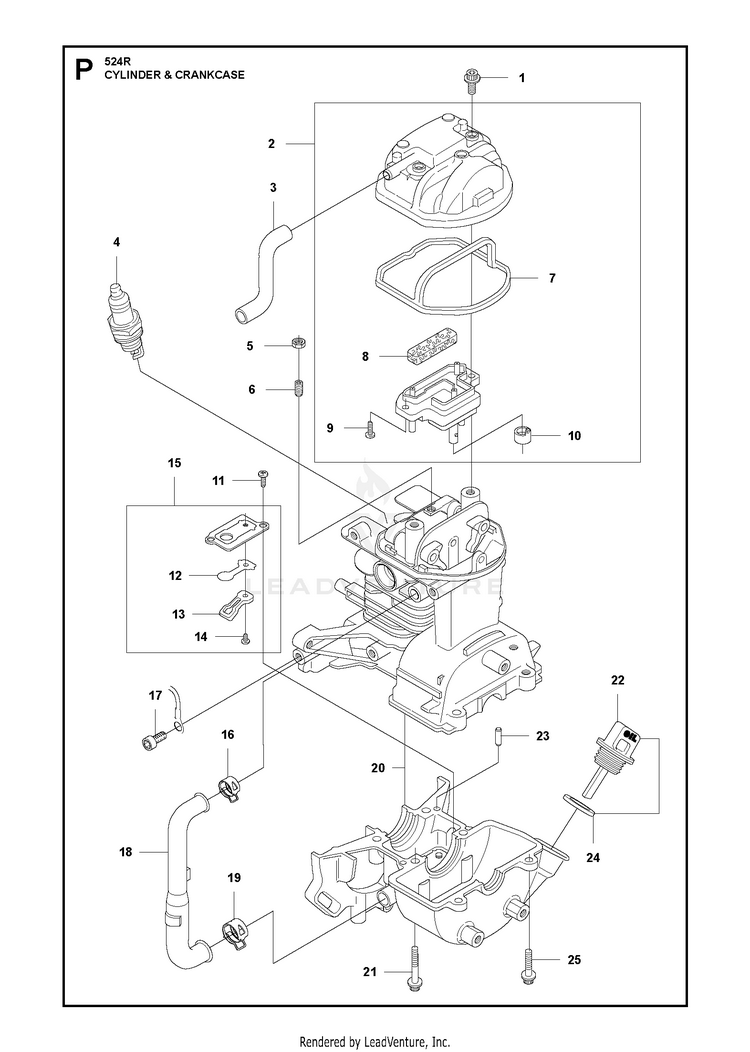

CYLINDER & CRANKCASE

...
...
23
PIN HUS-531008624
...
4
SPARK PLUG NGK CMR4H HUS-531008613
...
5
NUT HUS-531008621
...
14
SCREW HUS-531008622
...
6
SCREW HUS-531008619
...
8
FILTER HUS-531008725
...
9
SCREW HUS-531008623
...
15
VALVE HUS-531008727
...
20
CRANKCASE / CYLINDER HUS-531008721
...
3
HOSE HUS-531008612
...
4
CMR6H NGK SPARK PLUG NGK CMR6H HUS-531008615
...
10
SEALING HUS-531008724
...
18
HOSE HUS-531008726
...
7
GASKET HUS-531008723
...
12
BLADE HUS-531008608
...
16
CLIP HUS-531008625
...
17
SCREW MC6S 5X10 HUS-725532555
...
2
COVER HUS-531008722
...
4
CMR5H NGK SPARK PLUG NGK CMR5H (STD) HUS-531008614
...
22
GAUGE HUS-531008610
...
11
SCREW HUS-531008618
...
21
SCREW HUS-531008617
...
25
SCREW HUS-531008616
...
13
MOVEMENT LIMITER HUS-531008609
...
1
SCREW HUS-531008620
...
19
CLIP HUS-531008626
...
24
GASKET HUS-531008611
