Husqvarna 524 R (2020-11) Brushcutter/Clearing Saw

Model: 524 R (2020-11)

Back To Assemblies

Save Part Not Listed?
product name

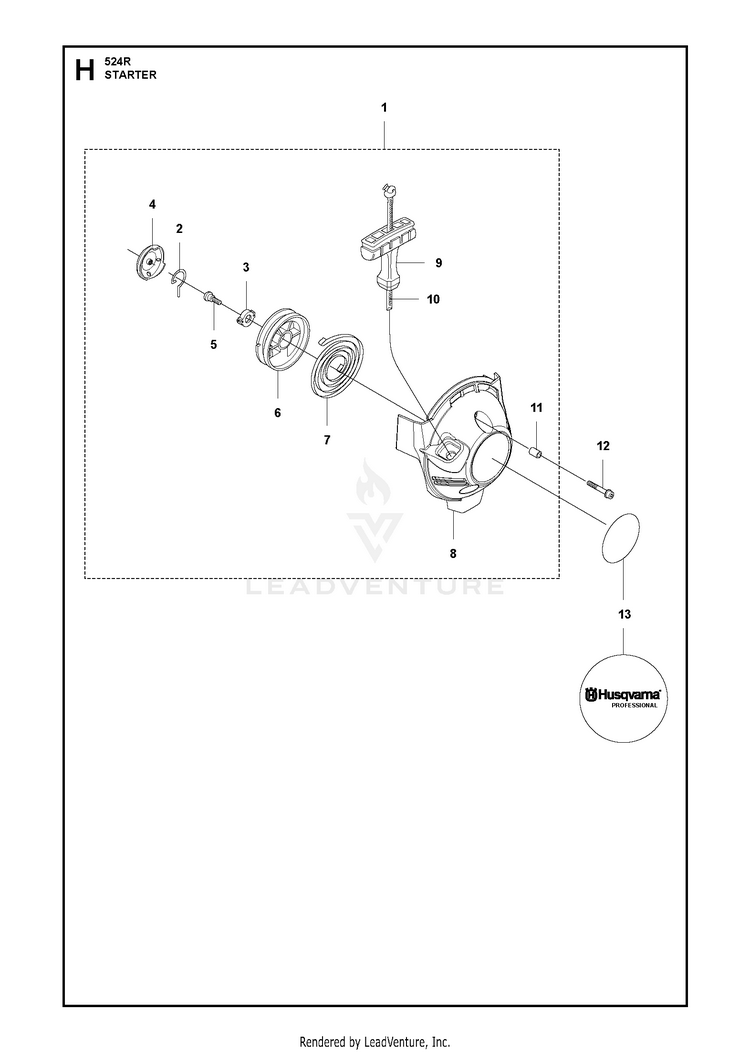

STARTER

...
...
1
STARTER DEVICE HUS-531008641
...
5
SCREW HUS-531008650
...
2
PAWL HUS-531008647
...
3
HOLDER HUS-531008652
...
7
RETURN SPRING HUS-531008645
...
4
CARRIER HUS-531008646
...
9
STARTER HANDLE HUS-537008401
...
11
SLEEVE HUS-531008653
...
6
STARTER PULLEY HUS-531008643
...
12
SCREW HUS-531008651
...
13
DECAL HUS-587357002
...
10
STARTER ROPE HUS-531008649
...
8
STARTER HOUSING HUS-531008642
Schematic Image Zoomed
