Husqvarna 524 R (2020-11) Brushcutter/Clearing Saw

Model: 524 R (2020-11)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

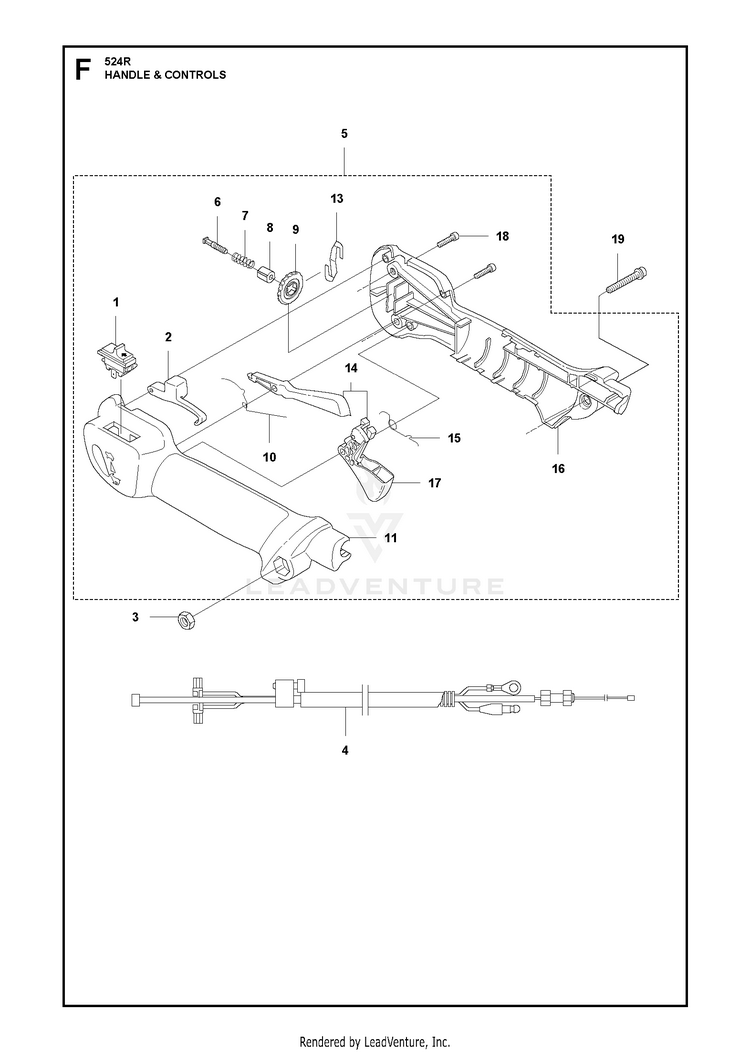

HANDLE & CONTROLS

...
...
4
CABLE ASSY HUS-537335701
...
15
SPRING HUS-537174201
...
3
NUT HUS-503221013
...
7
SPRING Does not fit with HANDLE HALF 537 16 02-09 HUS-537183601
...
12
HANDLE HALF LEFT Replaced by 537 18 35-07 HANDLE SYSTEM cpl HUS-537160209
...
13
PLATE Does not fit with HANDLE HALF 537 16 02-09 HUS-537174401
...
16
HANDLE HUS-537160302
...
1
START/STOP SWITCH HUS-503718201
...
18
SCREW HUS-503216618
...
17
THROTTLE CONTROL HUS-506497701
...
9
STEERING WHEEL Does not fit with HANDLE HALF 537 16 02-09 HUS-537160901
...
6
SCREW Does not fit with HANDLE HALF 537 16 02-09 HUS-537161201
...
11
HANDLE HALF LEFT Without hole for Steering wheel assy HUS-537160209
...
10
SPRING HUS-537174301
...
2
STARTER THROTTLE LOCK HUS-537160703
...
14
THROTTLE CONTROL HUS-506497701
...
19
SCREW IHSCFM HUS-503200782
...
8
HUB Does not fit with HANDLE HALF 537 16 02-09 HUS-537161001
...
5
HANDLE HUS-537183507
