Husqvarna 524 R (2020-11) Brushcutter/Clearing Saw

Model: 524 R (2020-11)

Back To Assemblies

Save Part Not Listed?
product name

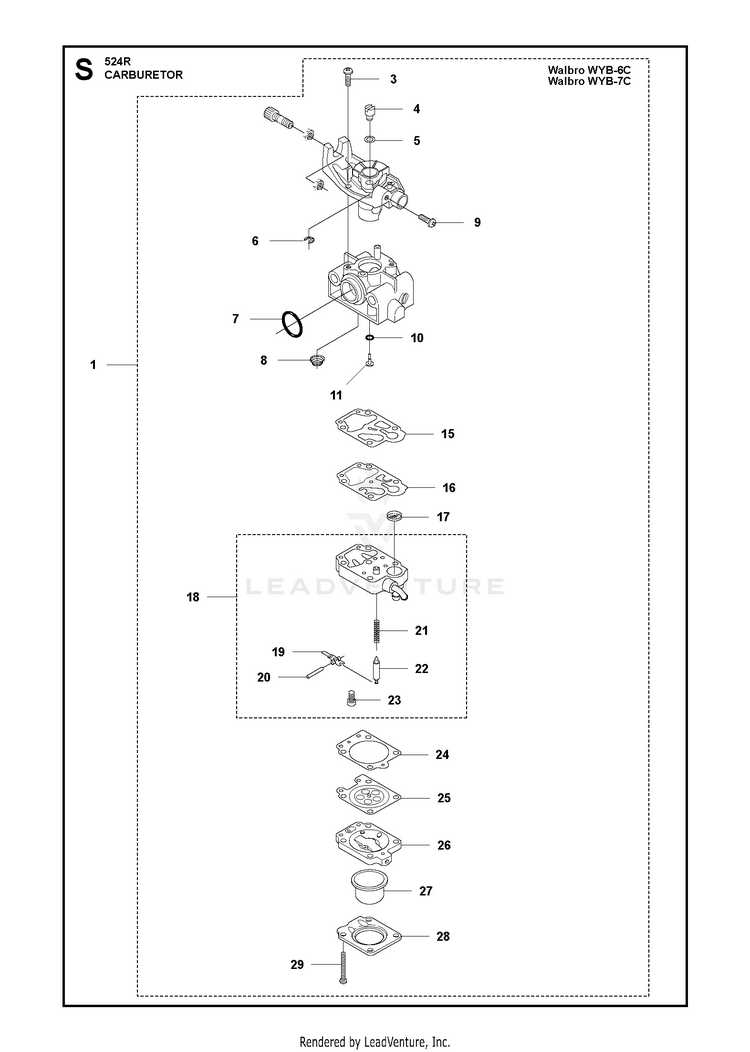

CARBURETOR DETAILS

...
...
24
GASKET HUS-531008659
...
19
LEVER HUS-531008670
...
11
JET #35 HUS-531008691
...
21
SPRING HUS-531008667
...
11
JET STD #32 HUS-531008688
...
3
SCREW HUS-531008675
...
10
O-RING HUS-531008672
...
16
PUMP DIAPHRAGM HUS-531008662
...
15
GASKET HUS-531008660
...
18
HOUSING HUS-531008663
...
1
CARBURETOR Walbro WYB-6C HUS-531008681
...
7
O-RING HUS-531008686
...
1
CARBURETTOR WALBRO WYB7C Walbro WYB-7C HUS-544193301
...
25
DIAPHRAGM HUS-531008661
...
6
RETAINING RING HUS-531008671
...
27
PUMP HUS-531008679
...
11
JET #34 HUS-531008690
...
28
COVER HUS-531008673
...
23
SCREW HUS-531008668
...
8
SPRING HUS-531008677
...
26
HOUSING HUS-531008664
...
9
SCREW HUS-531002443
...
4
SWIVEL HUS-531008674
...
22
VALVE HUS-531008666
...
11
JET #33 HUS-531008689
...
17
SCREEN HUS-531008665
...
5
WASHER HUS-531008678
...
29
SCREW HUS-531008676
...
20
SHAFT HUS-531008669
