Husqvarna 524 LK Trimmer/Edger

Model: 524 LK

Back To Assemblies

Save Part Not Listed?
product name

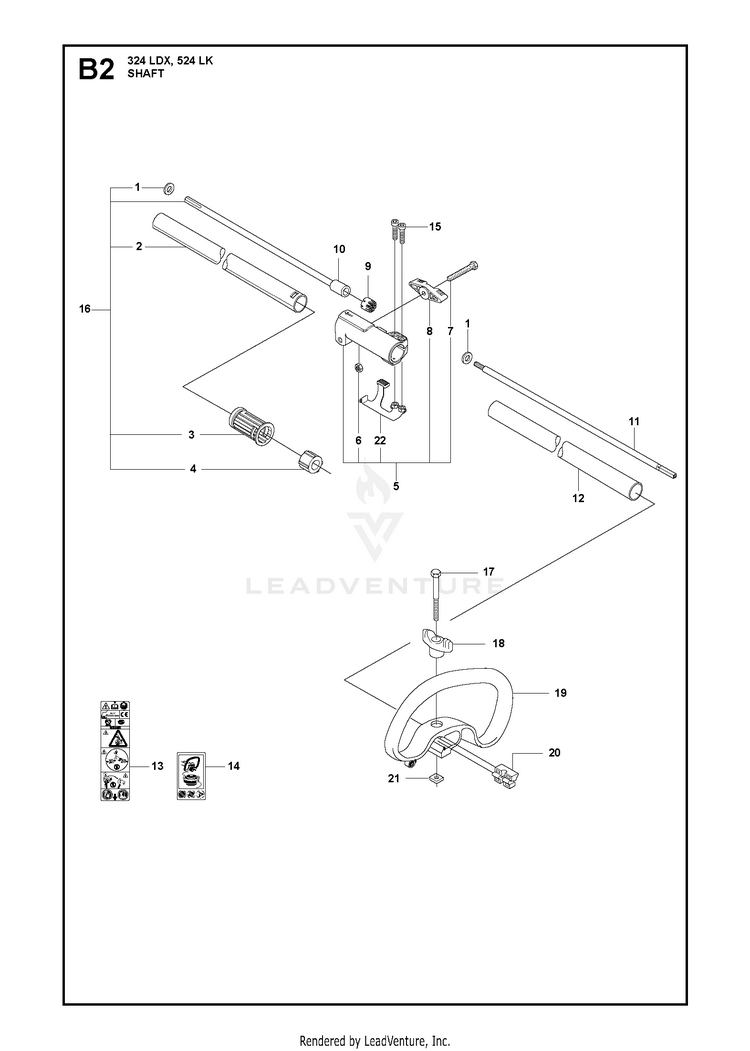

SHAFT & HANDLE

...
...
19
HANDLE HUS-503871908
...
11
DRIVE SHAFT L=699mm Ø=7mm, square end HUS-537234805
...
9
CLIP HUS-583938301
...
16
TUBE HUS-587988101
...
6
NUT HUS-731231601
...
12
TUBES L=650mm Ø=24mm HUS-587987901
...
17
SCREW M6X50 HUS-725238051
...
18
KNOB HUS-503879001
...
10
SHAFT L=843mm Ø=7mm HUS-587411701
...
21
NUT HUS-502197101
...
5
CLAMPING SLEEVE HUS-576282602
...
13
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
20
SPACER PLASTIC HUS-503940301
...
8
KNOB CLAMPING SLEEVE HUS-576282401
...
14
DECAL WARNING "NO BLADES" HUS-503795601
...
11
SHAFT UPPER L=699mm Ø=7mm, thread end HUS-537083001
...
1
WASHER HUS-735580810
...
22
LOCKING PLATE ASSY CLAMPING SL HUS-576282301
...
15
SCREW HUS-503200725
...
4
BUSHING HUS-503785202
...
7
BOLT FLANGE HUS-725237651
...
3
PLUG HUS-587414601
...
2
TUBE L=850mm Ø=24mm HUS-537082701
