product name

Husqvarna 524 L Trimmer/Edger

Model: 524 L

Back To Assemblies

Save Part Not Listed?
product name

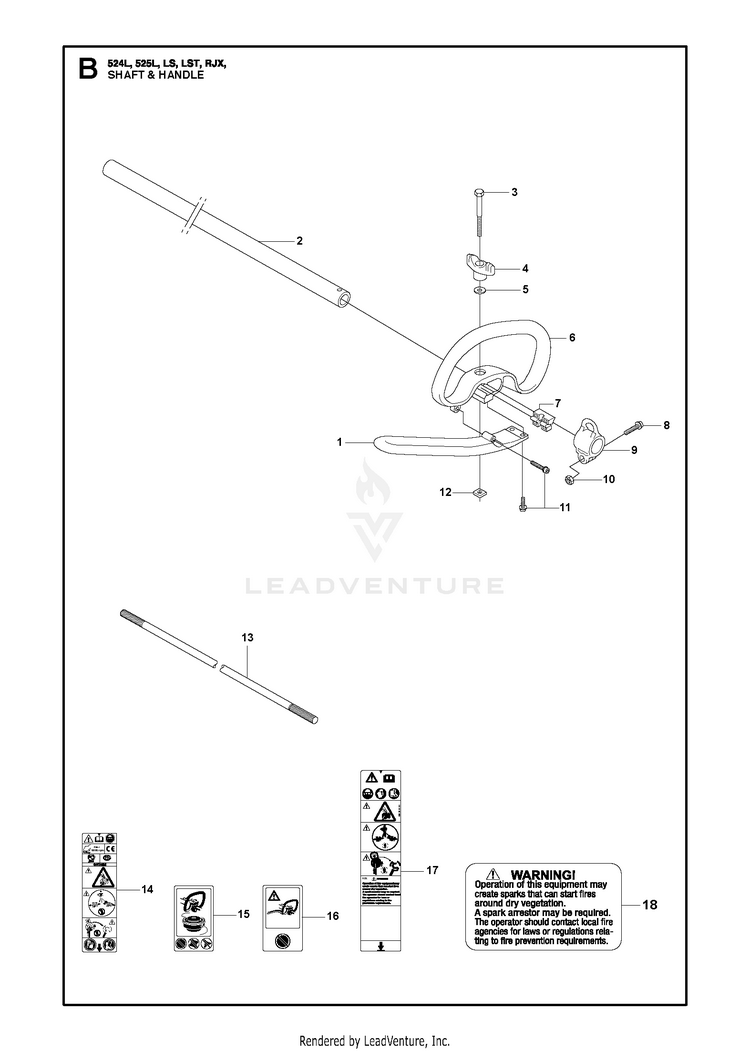

SHAFT & HANDLE

...
...
15
DECAL WARNING "NO BLADES" HUS-503795601
...
13
DRIVESHAFT L=1515 Ø7mm HUS-581815101
...
3
SCREW M6X50 RJX, LK M6x50 HUS-725238051
...
17
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
1
HANDLE RJX, (L, LST, RJD Australia) HUS-503997804
...
12
NUT HUS-502197101
...
3
BOLT L, LS, LST, RJD, RJX, LK USA, M6x35 HUS-510906101
...
6
HANDLE LK, RJD, (LST Australia) HUS-503871908
...
2
TUBE COMP L=1484 Ø24mm HUS-584977901
...
14
LABEL HUS-587111907
...
4
KNOB RJX, LK HUS-503879001
...
6
HANDLE L, LS, LST, RJX HUS-503871906
...
9
HARNESS HOLDER RJX HUS-503941001
...
16
DECAL RJX HUS-537101001
...
10
NUT RJX HUS-731231401
...
7
SPACER PLASTIC HUS-503940301
...
18
DECAL SPARK ARRESTOR WARNING HUS-522928602
...
5
WASHER RJX, LK HUS-503230061
...
8
SCREW RJX HUS-525755101
...
11
SCREW RJX, (L, LST, RJD Australia) HUS-580633301
