Husqvarna 522 L Trimmer/Edger

Model: 522 L

Back To Assemblies

Save Part Not Listed?
product name

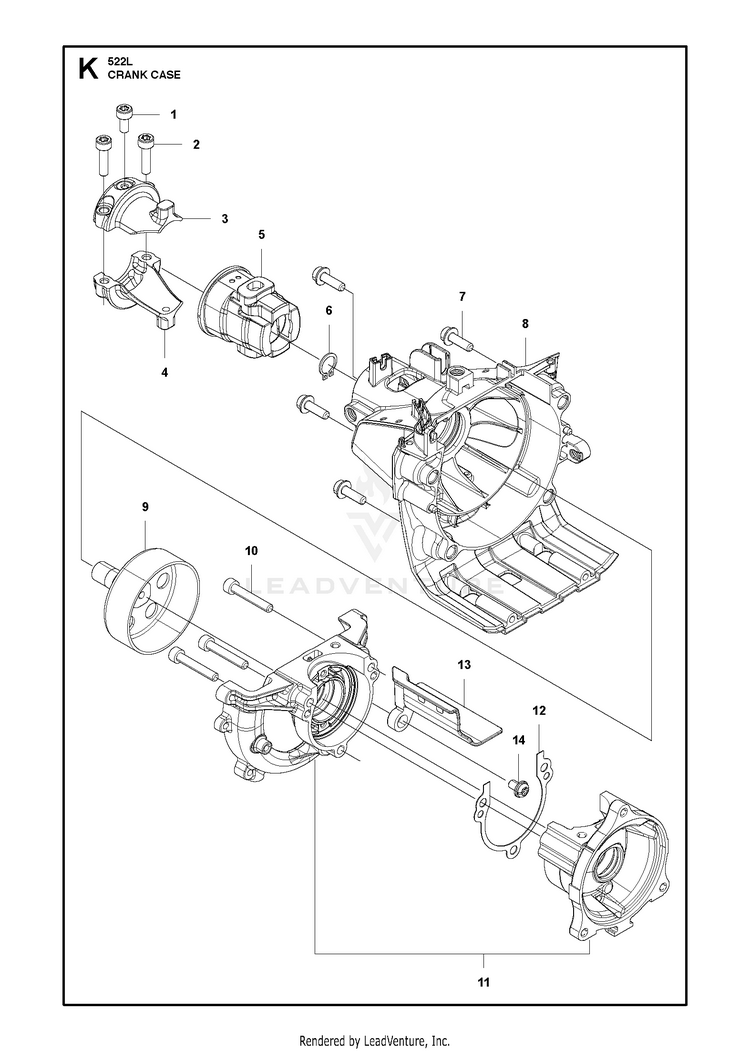

CRANKCASE

...
...
4
BRACKET LOWER HUS-576420802
...
5
CUSHION UPPER HUS-576420501
...
12
GASKET CASE HUS-576407501
...
10
BOLT HUS-512845901
...
8
HOUSING CLUTCH HUS-576410603
...
2
BOLT M5X20 T27 HUS-577942001
...
3
BRACKET UPPER M5X0.8 HUS-576420702
...
14
SCREW HUS-544256801
...
11
CRANKCASE ASSY HUS-578010004
...
13
PLATE HUS-576410202
...
6
RING HUS-516124101
...
9
CLUTCH DRUM HUS-581142001
...
7
BOLT M5 X 16 HUS-577942301
...
1
BOLT HUS-529268101
