product name

Husqvarna 522 L Trimmer/Edger

Model: 522 L

Back To Assemblies

Save Part Not Listed?

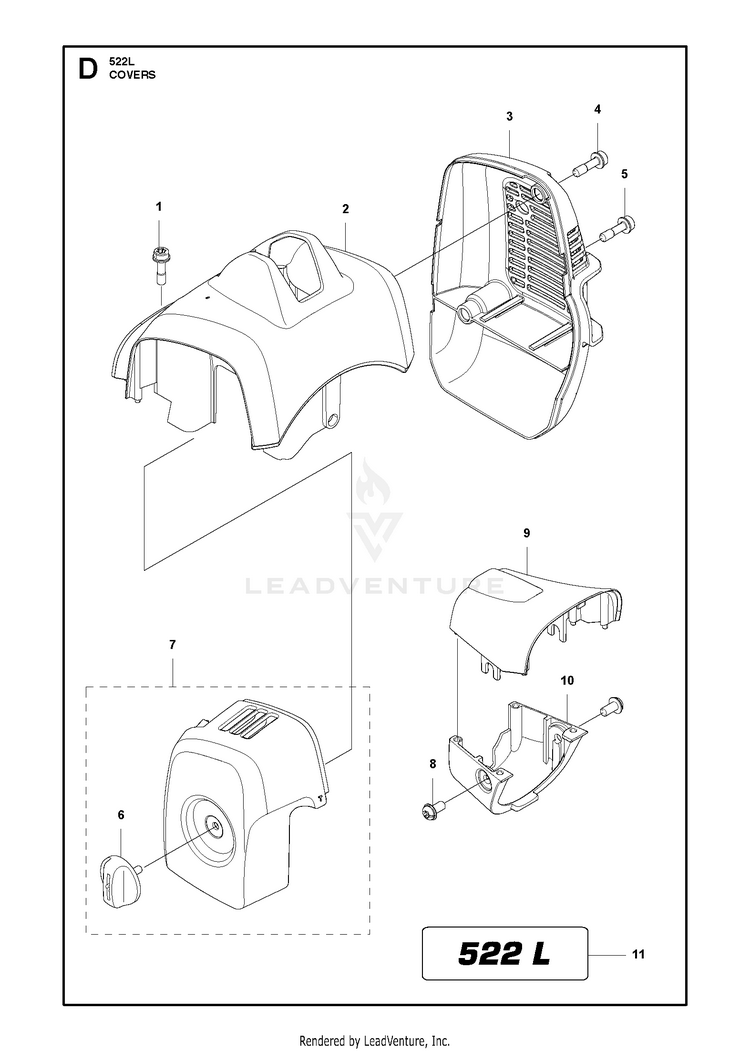

product name

COVER

...
...
10
COVER CLUTCH HOUSING LOWER HUS-577947802
...
2
COVER HUS-576410706
...
4
BOLT HUS-577815402
...
11
DECAL NAME 522L HUS-579445819
...
7
FILTER COVER HUS-578079202
...
8
SCREW HUS-578473501
...
9
COVER CLUTCH HUS-577948002
...
1
BOLT HUS-577815402
...
6
KNOB CLEANER COLOR:GREY HUS-576992402
...
5
BOLT HUS-577815402
...
3
MUFFLER GUARD HUS-576410805
Schematic Image Zoomed
