Husqvarna 522 L Trimmer/Edger

Model: 522 L

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

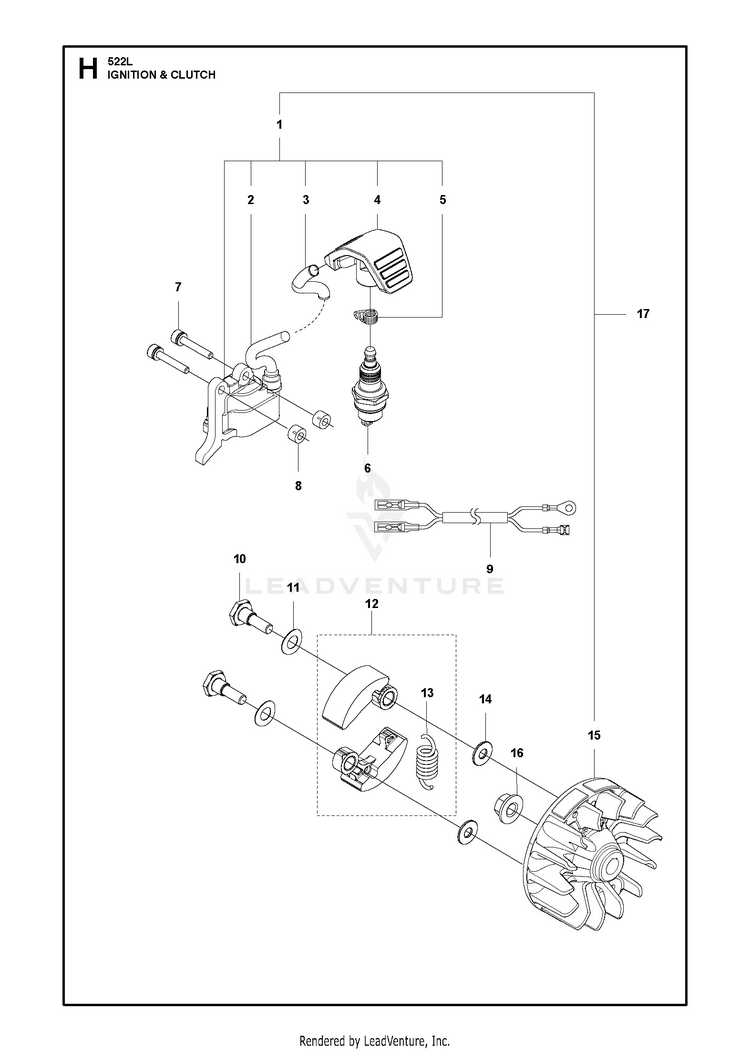

IGNITION SYSTEM & CLUTCH

...
...
15
FLYWHEEL S/n except above HUS-577445801
...
2
IGNITION CABLE S/n except above HUS-584826601
...
4
NEEDS DESCRIPTION HUS-588945801
...
7
BOLT HUS-578496401
...
16
NUT HUS-513667501
...
1
Ignition S/n from 20182200101 to 20191100740 HUS-587294501
...
1
Ignition S/n except above HUS-587294501
...
14
WASHER HUS-505054401
...
3
NEEDS DESCRIPTION S/n from 20182200101 to 20191100740 HUS-588945601
...
11
WASHER HUS-513189501
...
9
SHORT CIRCUIT CABLE HUS-577851701
...
8
SPACER HUS-588171401
...
17
IGNITION MODULE ASSY S/n from 20182200101 to 20191100740 HUS-587294401
...
15
FLYWHEEL S/n from 20182200101 to 20191100740 HUS-587251901
...
10
SCREW HUS-513189601
...
6
SPARK PLUG HQT-2 RESISTOR HQT-2 HUS-590710101
...
2
NEEDS DESCRIPTION S/n from 20182200101 to 20191100740 HUS-588945901
...
3
TUBE S/n except above HUS-579590701
...
5
NEEDS DESCRIPTION HUS-588945701
...
12
CLUTCH ASSY HUS-585834701
...
13
CLUTCH SPRING HUS-576400701
...
17
NEEDS DESCRIPTION S/n except above HUS-588087707
Schematic Image Zoomed
