Husqvarna 522 L Trimmer/Edger

Model: 522 L

Back To Assemblies

Save Part Not Listed?
product name

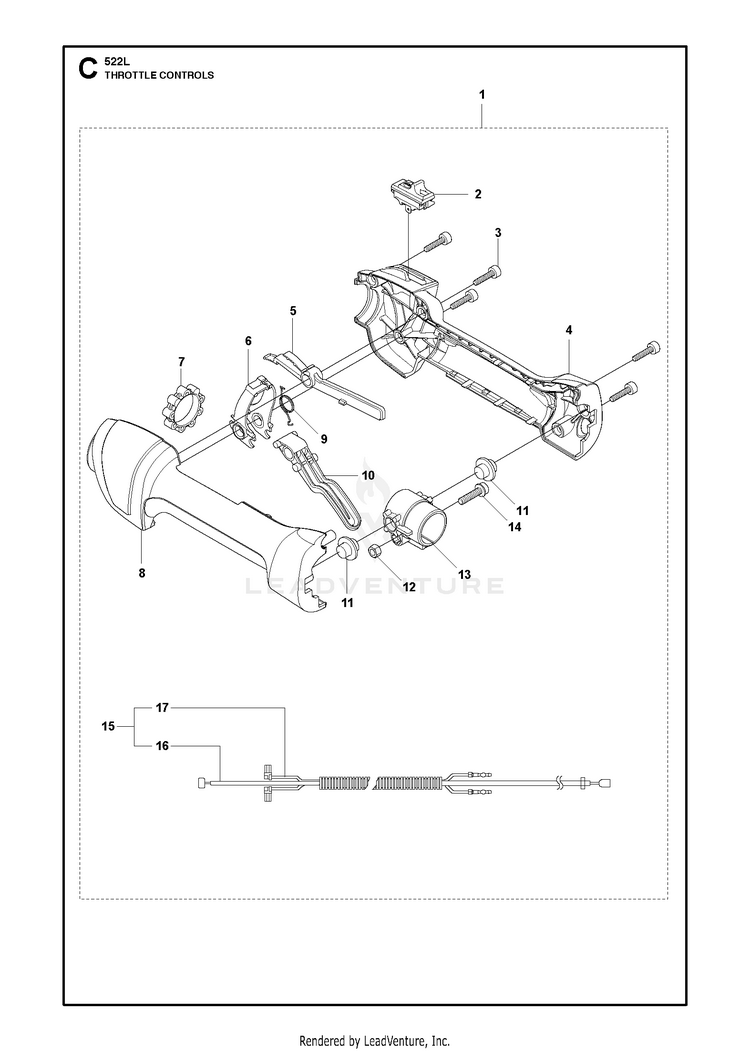

THROTTLE CONTROLS

...
...
10
THROTTLE TRIGGER HUS-503877903
...
11
VIBRATION ABSORBER HUS-544101702
...
17
SHORT CIRCUIT CABLE HUS-502531601
...
1
THROTTLE CONTROL HUS-578279501
...
7
VIBRATION DAMPER HUS-503961401
...
14
BOLT TORX HUS-506689001
...
13
HOLDER HUS-544112101
...
12
NUT HUS-731231401
...
9
RETURN SPRING HUS-544100801
...
15
WIRING ASSY HUS-578279601
...
2
STOP BUTTON HUS-537419001
...
4
HANDLE HUS-544238401
...
6
LEVER HUS-503918101
...
8
HANDLE HUS-544238501
...
3
SCREW HUS-575960501
...
16
THROTTLE CABLE HUS-578867801
...
5
THROTTLE LOCK HUS-503878001
