Husqvarna 522 L Trimmer/Edger

Model: 522 L

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

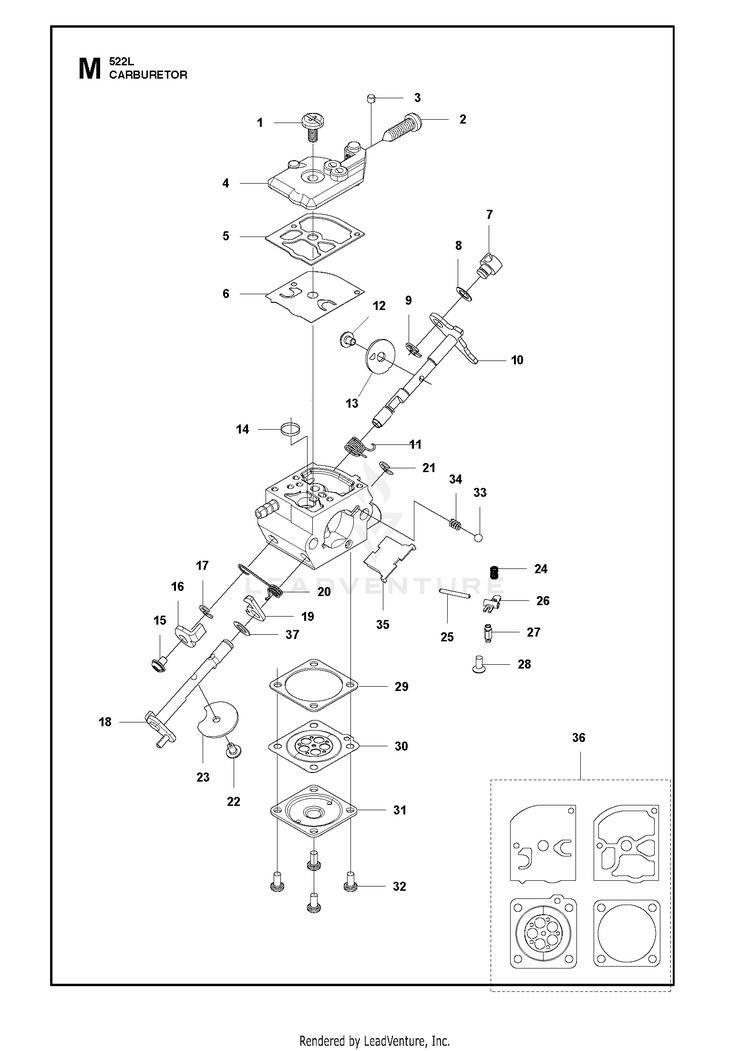

CARBURETOR

...
...
20
SPRING HUS-585320301
...
21
RING HUS-585320201
...
3
PLUG HUS-578389701
...
32
SCREW M3X7 HUS-577900501
...
2
SCREW HUS-579631701
...
34
SPRING FRICTION HUS-577901601
...
16
LEVER THROTTLE OUTER HUS-585319801
...
8
GASKET HUS-577901101
...
22
SCREW HUS-577899701
...
19
PLATE HUS-585320001
...
35
PLATE HUS-577901001
...
31
COVER METERING CHAMBER HUS-577900001
...
9
E-RING HUS-577900401
...
15
SCREW HUS-577899701
...
4
PUMP COVER HUS-578389801
...
11
SPRING THROTTLE RETURN HUS-577900601
...
25
PIN HUS-578390601
...
30
DIAPHRAGM ASSY METERING HUS-577900101
...
17
E-RING HUS-577900401
...
33
BALL STEEL HUS-577901501
...
23
VALVE CHOKE T0.8 HUS-585318901
...
5
GASKET PUMP HUS-577899401
...
7
SWIVEL HUS-586383401
...
29
GASKET METERING CHAMBER HUS-577899901
...
37
SPACER HUS-585319701
...
14
STRAINER HUS-577900301
...
6
DIAPHRAGM PUMP HUS-577899501
...
27
VALVE INLET HUS-579631901
...
18
SHAFT ASSY, CHOKE HUS-585319901
...
26
LEVER HUS-578390201
...
10
SHAFT ASSY, THROTTLE HUS-585319601
...
1
SCREW HUS-577899301
...
28
SCREW M3X6 HUS-578390301
...
13
VALVE THROTTLE HUS-577899601
...
36
GASKET KIT Includes 5,6,29,30 HUS-577901801
...
24
SPRING HUS-579631801
...
12
SCREW HUS-577899701
