Husqvarna 520iHD60 (old) Hedge Trimmer

Model: 520iHD60 (old)

Save
 Don't See Your Part Listed?
product name

ACCESSORIES

...
...
4
DIAGNOSTIC TOOL KIT HUS-583897101
...
5
WIRING ASSY HUS-579621301
...
1
MAIN CABLE HUS-578081901
...
3
CABLE HUS-579130401
...
2
CABLE HUS-579130601

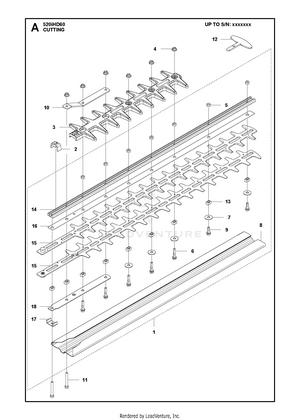

CUTTING EQUIPMENT

...
...
18
BAR HUS-580715802
...
6
SCREW M5X25 T27 HUS-525755114
...
8
TRANSPORT GUARD CUTTING DECK H HUS-581259302
...
17
BRACKET HUS-578372001
...
15
BLADE ASSY HD60 SLOTS INCR. HUS-580715603
...
13
SPACER HEDGE TRIMMER HUS-580716201
...
10
SUPPORT CUTTING DECK HUS-580931501
...
7
WASHER 6,4X18X1,5 HUS-503230024
...
12
PROTECTION BLADE TIP HUS-581483501
...
14
BAR CUTTING DECK LIHD60 HUS-580715701
...
5
NUT HUS-731231401
...
4
HEXAGON NUT FLANGE M5 8 ZN/FE HUS-503220009
...
2
GASKET HUS-578372201
...
9
SCREW M5X16 T25 HUS-525755113
...
3
PROTECTION ASSY BLADE HUS-581100901
...
11
SCREW IHSCT EN ISO 4762 / DIN HUS-581761601
...
1
CUTTING DECK 520IHD60 HUS-591479207
...
16
WEAR PLATE HD60 HUS-580716001

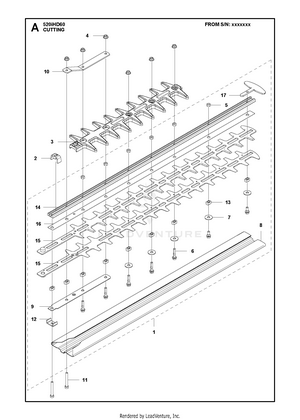

CUTTING EQUIPMENT 2

...
...
13
SPACER CUTTING DECK HUS-592638901
...
1
CUTTING DECK 520IHD60 HUS-591479207
...
4
HEXAGON NUT FLANGE M5 8 ZN/FE HUS-503220009
...
8
TRANSPORT GUARD CUTTING DECK L HUS-592748501
...
18
SCREW M5X16 T25 HUS-525755113
...
2
GASKET HUS-578372201
...
16
WEAR PLATE HUS-591374801
...
15
BLADE ASSY HD60 HUS-591452301
...
10
SUPPORT CUTTING DECK HUS-580931501
...
3
PROTECTION ASSY BLADE HUS-581100901
...
5
NUT HUS-731231401
...
12
BRACKET CUTTING DECK HUS-592750401
...
9
BAR LOWER HUS-592744601
...
11
SCREW HUS-590919201
...
6
SCREW M5X25 T27 HUS-525755114
...
14
BAR HUS-591375101
...
7
WASHER 6,4X18X1,5 HUS-503230024
...
17
NEEDS DESCRIPTION HUS-592737902

ELECTRICAL

...
...
2
TRIGGER SWITCH IPX4 HUS-582050701
...
1
WIRING ASSY TRIGGER HANDLE HUS-583819701
...
4
SCREW HUS-503212813
...
9
SWITCH KIT BATTERY HEDGETRIMME HUS-593896501
...
5
WIRING ASSY FRONT GUARD HUS-581531301
...
3
KEYPAD 2 BUTTON MEMCON CONNECT HUS-584953102
...
6
CONTROL UNIT PMDC SAFE HEDGE T HUS-581946601
...
7
GREASE TUBE Q8 RUYSDAEL WR2 SB-B1500023 HUS-588176401
...
8
WIRING ASSY HUS-579709301
...
10
CONNECTOR BATTERY HUS-593813001

GEARS

...
...
3
SCREW IHSCFT HUS-503216872
...
4
GASKET HUS-584411001
...
2
Plates HUS-582386602
...
7
WASHER DISK DISC HUS-522714601
...
6
LOCK WASHER HUS-578054901
...
1
GREASE 20G HEDGE TRIMMER GEAR HUS-503989603
...
11
ECCENTRIC DISC HUS-581838501
...
12
GEAR HELICAL KIT 536LIHD60X/ 5 HUS-582837001
...
9
CONNECTING ROD ASSY HUS-582363101
...
8
MOTOR ASSY MOTOR-GEARBOX ASSY HUS-582386701
...
10
HEAVY DUTY DOWEL PIN PROJEKT 1 HUS-578002701
...
13
GEAR CASE ASSY DC HUS-582386401
...
5
HELICAL GEAR CPL DC HUS-582363001

HANDLE

...
...
2
FRONT HANDLE HANDGUARD HUS-579563402
...
6
BUSHING FRONT HANDLE HUS-580790101
...
5
FRONT HANDLE LOCKOUT HUS-579563602
...
4
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
1
FRONT HANDLE COVER HUS-579563503
...
9
LEVER FRONT HANDLE HUS-581223201
...
7
RECOIL SPRING FRONT HANDLE HUS-583890301
...
3
SCREW HUS-503218876
...
8
SPRING FRONT HANDLE HUS-584274001

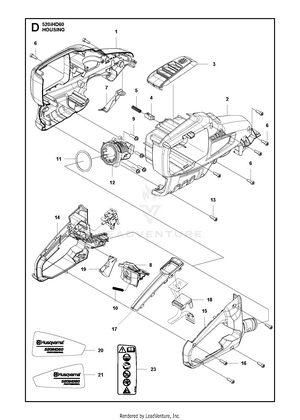

HOUSING

...
...
16
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
5
SPRING PUSH OUT HUS-585480001
...
14
REAR HANDLE LEFT HUS-579563701
...
3
COVER CHASSIS HUS-579560301
...
19
THROTTLE CONTROL HUS-579564101
...
4
PUSH BUTTON HUS-577996601
...
23
DECAL HUS-577844301
...
9
SCREW IHSCFT HUS-503216872
...
13
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
11
O-RING HUS-575232001
...
6
SCREW HUS-503217416
...
17
FRAME KEYPAD HUS-579565401
...
21
DECAL PRODUCT LEFT 520IHD60 HUS-581662805
...
18
BRACKET KEYPAD HUS-580719501
...
2
CHASSIS RIGHT Chassis right HUS-579559701
...
7
COVER WIRING HUS-580715001
...
20
DECAL PRODUCT RIGHT 520IHD60 HUS-581662905
...
1
CHASSIS LEFT Chassis left HUS-579559601
...
15
REAR HANDLE RIGHT HUS-579563801
...
10
RECOIL SPRING RECOIL SPRING RE HUS-584270001
...
8
LOCKING BUTTON HUS-579565301
...
12
HANDLE HOLDER HUS-579560101
...
...
...
...
