Husqvarna 510 MDT (954140054A) (1998-02) Walk Mower

Model: 510 MDT (954140054A) (1998-02)

Save Part Not Listed?
product name

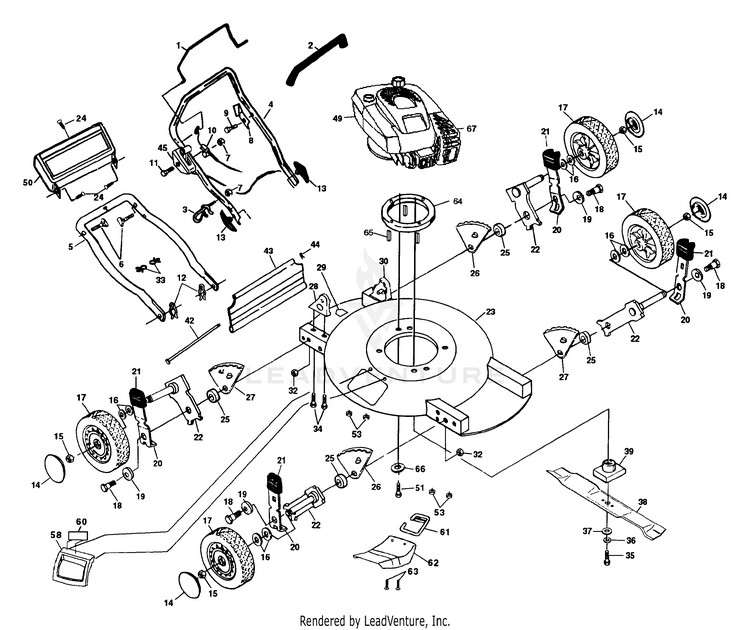

Rotary Lawn Mower

...
...
1
CONTROL BAR/BLACK HUS-532850735
...
2
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
3
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
4
UPPER HANDLE HUS-532166267
...
5
HANDLE.LOWER.BLACK HUS-532157081
...
6
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
8
BRACKET.UPSTOP HUS-532850733
...
9
SCREW HUS-817021008
...
10
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
11
SCREW.PAN.HEAD HUS-532158755
...
12
HAIRPIN COTTER HUS-532051793
...
13
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
14
Hubcap HUS-53208508J
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
16
KIT.O-RING/WASHER HUS-532428450
...
17
UPPER HANDLE HUS-532167122
...
18
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
19
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
20
SELECTOR SPRING HUS-532125066
...
21
SELECTOR KNOB HUS-532701037
...
22
AXLE ARM HUS-532145937
...
23
KIT HSG 20" MULCH (Includes Key No. 29) HUS-532141934
...
24
FASTENER HUS-532701477
...
25
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
26
BRACKET WHL ADJ HUS-532140058
...
27
WHL ADJ BRKT LF/RR HUS-532800368
...
28
KIT HANDLE BRACKET LH/RH HUS-532192983
...
29
DECAL.CUTFINGER.CE.02 HUS-581579101
...
30
HDLE BRKT ASSY LH HUS-532153027
...
32
Nuts HUS-596322601
...
33
WIRE TIE HUS-532007192
...
34
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
35
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
36
Washers HUS-596238701
...
37
WASHER,HARDEN HUS-532851074
...
38
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
39
BLADE ADAPTOR HUS-532851514
...
42
DEFLECTOR ROD HUS-532150984
...
43
SKIRT-REAR 20" HUS-532150985
...
44
RETAINER CLIP HUS-532700279
...
45
THROTTLE CONTROL HUS-532158059
...
50
TRIM PLATE HUS-532157070
...
51
SCREW HUS-532850999
...
53
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
58
Mulcher Door HUS-532154827
...
61
BRACKET.CHUTE.MTG HUS-532751399
...
62
MULCHER DEFLECTOR HUS-532752118
...
63
Truss Head Screw HUS-874180410
...
64
ENGINE SPACER HUS-532850988
...
65
ENGINE SPACER HUS-532850988
...
66
WASHER HUS-532053998
...
67
Muffler Guard HUS-532163376
...
68
Screw (Not shown) HUS-532163382
...
69
PROTECTOR (Not shown) HUS-532136383
...
xx
Owner's Manual (English/French) HUS-532162306
...
xx
Decal (Housing) HUS-532157094
...
xx
Engine (Decal) HUS-532159714
