Husqvarna 51 MD (H51MDB) (954071901) (1994-12) Walk Mower

Model: 51 MD (H51MDB) (954071901) (1994-12)

Save Part Not Listed?
product name

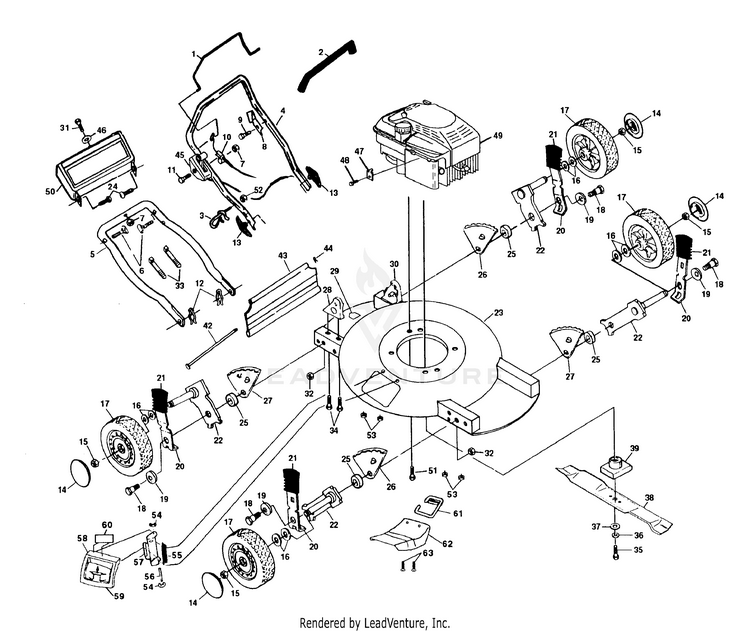

General Assembly

...
...
1
CONTROL BAR/BLACK HUS-532850735
...
2
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
3
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
4
UPPER HANDLE HUS-532166268
...
5
HANDLE.LOWER.BLACK HUS-532157081
...
6
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
8
BRACKET.UPSTOP HUS-532850733
...
9
SCREW HUS-817021008
...
10
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
11
SCREW.PAN.HEAD HUS-532158755
...
12
HAIRPIN COTTER HUS-532051793
...
13
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
14
HUB CAP HUS-532850845
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
16
KIT.O-RING/WASHER HUS-532428450
...
17
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
18
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
19
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
20
SELECTOR SPRING HUS-532125066
...
21
SELECTOR KNOB HUS-532701037
...
22
AXLE ARM ASSY HUS-532800754
...
23
KIT HSG 20" MULCH (Includes Key No. 29) HUS-532141934
...
24
SCREW HUS-532036953
...
25
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
26
BRACKET WHL ADJ HUS-532140058
...
27
WHL ADJ BRKT LF/RR HUS-532800368
...
28
KIT HANDLE BRACKET LH/RH HUS-532192983
...
29
DECAL.CUTFINGER.CE.02 HUS-581579101
...
30
KIT HANDLE BRACKET LH/RH HUS-532192983
...
31
Bolt, Hex 1/4-20 x 1-1/2 HUS-874760424
...
32
Nuts HUS-596322601
...
33
WIRE TIE HUS-532007192
...
34
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
35
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
36
Washers HUS-596238701
...
37
WASHER,HARDEN HUS-532851074
...
38
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
39
BLADE ADAPTOR HUS-532851514
...
42
ROD.SKIRT.14.06.MULCHER.20 HUS-532751649
...
43
REAR DEFLECTOR HUS-532140544
...
44
RETAINER CLIP HUS-532700279
...
45
THROTTLE CONTROL HUS-532700417
...
46
WASHER PM HUS-532085723
...
47
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532125078
...
48
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
50
TRIM PLATE HUS-532800547
...
51
BOLT 3/8-16X1-1/8 HUS-532150406
...
52
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
53
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
54
E-RING HUS-812000014
...
55
SPRING PM HUS-532087589
...
56
ROD PM HUS-532087590
...
57
BRACKET HSG ASSY HUS-532130737
...
58
MULCHER DOOR HUS-532140862
...
59
DOOR LATCH HUS-532140864
...
60
DECAL HUS-532140648
...
61
BRACKET.CHUTE.MTG HUS-532751399
...
62
MULCHER DEFLECTOR HUS-532752118
...
63
Truss Head Screw HUS-874180410
...
xx
Owner's Manual (English/French) HUS-532146461
...
xx
ENG DECAL NLA HUS-532800569
...
xx
DECAL HOUSING HUS-532142184
...
xx
DECAL,TRIMPLATE HUS-532850788
