Husqvarna 51 D (H51DB) (954052601) (1991-01) Walk Mower

Model: 51 D (H51DB) (954052601) (1991-01)

Save Part Not Listed?
product name

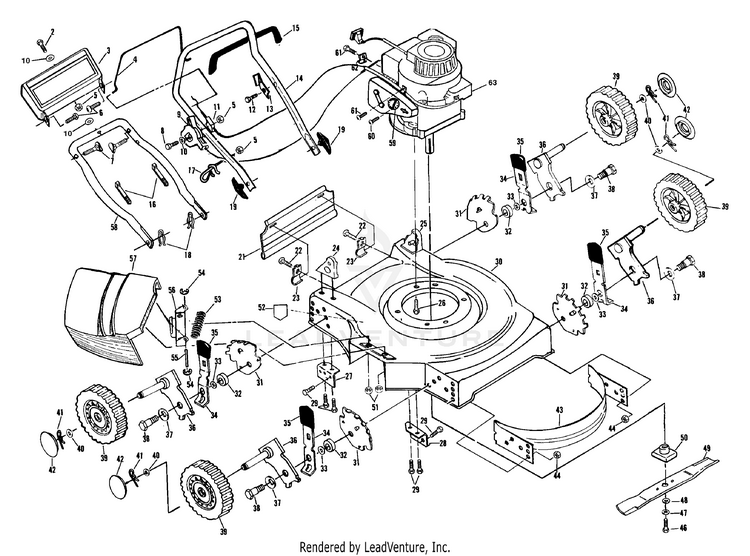

General Assembly

...
...
2
Bolt, Hex 1/4-20 x 1-1/2 HUS-874760424
...
3
TRIM PLATE HUS-532800547
...
4
CONTROL BAR/BLACK HUS-532850735
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
SCREW HUS-532036953
...
7
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
8
SCREW.1/4-20.CROSS.RECESS. HUS-874250434
...
9
THROTTLE CONTROL HUS-532851461
...
10
WASHER PM HUS-532085723
...
11
CABLE,ENG ZONE CT HUS-532851669
...
12
SCREW HUS-817021008
...
13
BRACKET.UPSTOP HUS-532850733
...
14
HANDLE HUS-532125161
...
15
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
16
WIRE TIE HUS-532007192
...
17
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
18
HAIRPIN COTTER HUS-532051793
...
19
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
21
SKIRT.REAR.20RD HUS-532188984
...
22
SCREW HUS-817021008
...
23
BRACKET.SKIRT.BZP HUS-532192301
...
24
ASSY-HANDLE BRACKET (RT) HUS-532125164
...
25
ASSY-HANDLE BRACKET (LEFT HUS-532125163
...
26
BOLT 3/8-16X1-1/8 HUS-532150406
...
27
BRACKET NLA HUS-532125205
...
28
Support Handle Bracket (Left) HUS-532125206
...
29
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
30
HOUSING (Includes Key #52) HUS-532801091
...
31
BRACKET.ADJ.WHEEL.5POS.ADS HUS-532410807
...
32
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
33
WASHER.FLAT.1/2 HUS-532088348
...
34
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
35
SELECTOR KNOB HUS-532701037
...
36
KIT.ARM.ASM.AXLE.W/NUT.5 POS HUS-532187930
...
37
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
38
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
39
PACKAGE.WHEEL.8 X 2 RADIAL HUS-532086984
...
40
Washers HUS-596040101
...
41
RETAINER CLIP PM HUS-532085179
...
42
HUBCAP HUS-532800627
...
43
GUARD NLA HUS-532125044
...
44
NUT HUS-873610600
...
46
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
47
Washers HUS-596238701
...
48
WASHER,HARDEN HUS-532851074
...
49
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
50
BLADE ADAPTOR HUS-532851514
...
51
NUT HUS-532053490
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
53
SPRING PM HUS-532087589
...
54
E-RING HUS-812000014
...
55
ROD PM HUS-532087590
...
56
BRACKET PM HUS-532087593
...
57
DISCHARGE GUARD HUS-532850778
...
58
HANDLE.LOWER.BLACK HUS-532157081
...
59
DEFLECTOR These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532103251
...
60
SCREW These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532069485
...
61
SCREW HUS-532107488
...
62
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532125078
...
xx
PLATE NLA (Not Shown) HUS-532125046
...
xx
Operator's Manual (English) HUS-532801675
...
xx
Operator's Manual (French) HUS-532128433
...
xx
ENG DECAL NLA HUS-532800570
...
xx
DECAL,HOUSING HUS-532800571
...
xx
DECAL,TRIMPLATE HUS-532850788
