Husqvarna 51 D (954140031B) (1997-12) Walk Mower

Model: 51 D (954140031B) (1997-12)

Save Part Not Listed?
product name

Rotary Lawn Mower

...
...
3
TRIM PLATE HUS-532157070
...
4
CONTROL BAR/BLACK HUS-532850735
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
FASTENER HUS-532701477
...
7
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
8
SCREW.PAN.HEAD HUS-532158755
...
9
THROTTLE CONTROL HUS-532700417
...
11
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
12
SCREW HUS-817021008
...
13
BRACKET.UPSTOP HUS-532850733
...
14
UPPER HANDLE HUS-532166268
...
15
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
16
WIRE TIE HUS-532007192
...
17
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
18
HAIRPIN COTTER HUS-532051793
...
19
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
20
CLOSE OUT PLATE NLA HUS-532132681
...
21
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
22
Machine Screw HUS-874961008
...
23
BRACKET.SKIRT.BZP HUS-532192301
...
24
HDLE BRKT ASSY LH HUS-532153027
...
25
KIT HANDLE BRACKET LH/RH HUS-532192983
...
26
BOLT 3/8-16X1-1/8 HUS-532150406
...
28
LOCKNUT HUS-532069180
...
29
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
30
HOUSING ASSY (Includes Key #52) HUS-532142144
...
31
BRACKET.ADJ.WHEEL.5POS.ADS HUS-532410807
...
32
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
34
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
35
SELECTOR KNOB HUS-532701037
...
36
ARM.AXLE.ASM.BZP HUS-532145935
...
37
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
38
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
39
WHEEL.8X2.RAD.GRY HUS-532148442
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
42
HUBCAP.8".GREY HUS-532157008
...
43
FRONT BAFFLE HUS-532700839
...
46
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
47
Washers HUS-596238701
...
48
WASHER,HARDEN HUS-532851074
...
49
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
50
ADAPTOR.BLADE.7/8 HUS-581547901
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
53
SPRING.SIDE.DISCHARGE HUS-532411832
...
55
HINGE ROD HUS-532150215
...
56
HINGE DEFLECTOR HUS-532088602
...
57
DISCHARGE GUARD HUS-532142193
...
58
HANDLE.LOWER.BLACK HUS-532157081
...
61
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
62
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. HUS-532125078
...
xx
Owner's Manual (English/French) HUS-532160883
...
xx
DECAL (ENGINE) HUS-532157088
...
xx
DECAL (HOUSING) HUS-532157089
...
xx
DECAL (ENGINE) HUS-532150943
...
xx
BAFFLE (Not shown) HUS-532133379

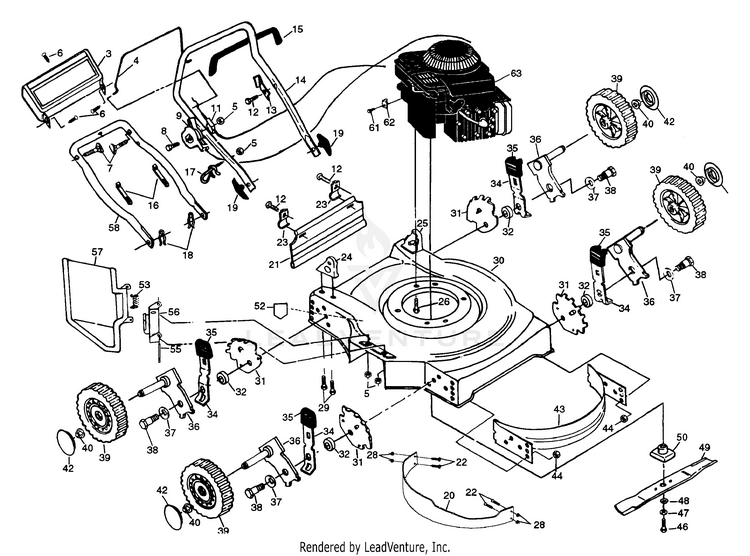

Schematic Image Zoomed
