Husqvarna 4P6D9A (1995) Tractor

Model: 4P6D9A (1995)

Back To Assemblies

Save Part Not Listed?
product name

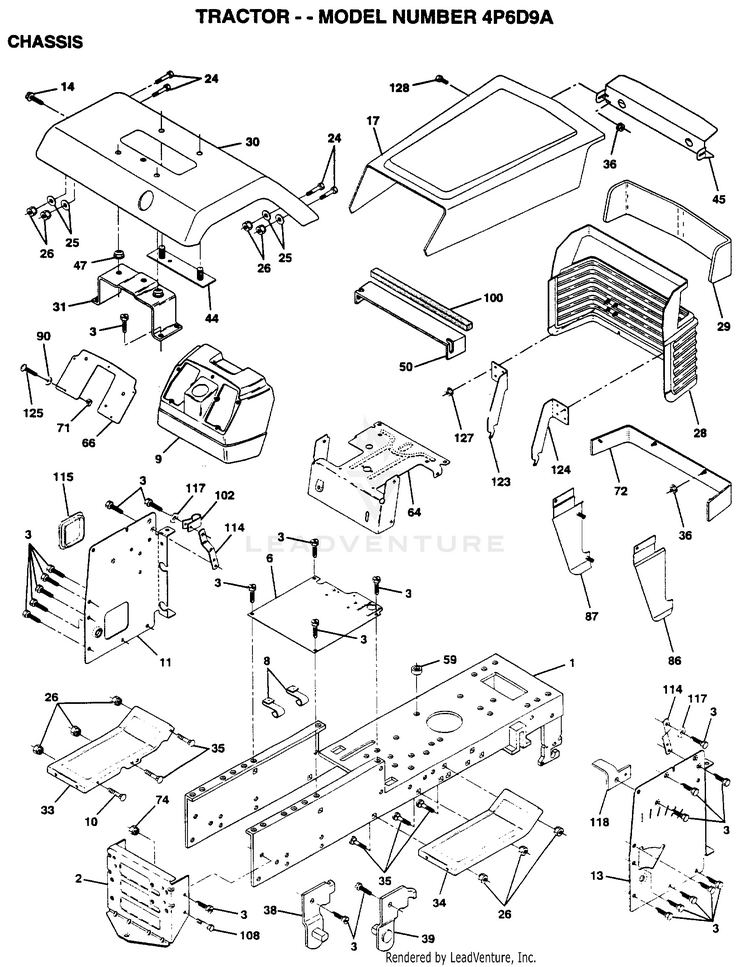

CHASSIS

...
...
1
CHASSIS.WLD.11GA HUS-145501
...
2
DRAW BAR HUS-123785X
...
3
SCREW HUS-17490612
...
6
SUB= 145206X431 HUS-145206
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
DASH.PLASTIC.BLK HUS-145203
...
10
SUB= 72110608 HUS-72140608
...
11
PANEL.DASH.LH.PNT HUS-145222
...
13
PANEL.DASH.RH.PNT HUS-145221
...
14
SCREW LT HUS-17490608
...
17
HOOD.ASM.YTGT.PNT HUS-123801X505
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILLE ASM WELD HUS-140671
...
29
LENS T HUS-110898X
...
30
FENDER.PNT. HUS-140002X505
...
31
BRKT.ASM.FENDER HUS-137113
...
33
FOOTREST.LH.LT/GT HUS-145244X505
...
34
FOOTREST.RH.LT/GT HUS-145243X505
...
35
BOLT HUS-72110606
...
36
PAL NUT LT HUS-108067X
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
44
STRAP ASM FENDER HUS-140675
...
45
SUB= 918132257 HUS-132257
...
47
NUT-PUSH YT HUS-105531X
...
50
"BAFFLE,HOOD" HUS-124046X
...
59
SUB= 9151R HUS-110436X
...
64
SUB= 150272 HUS-145095
...
66
PLATE DASH SILKSC HUS-140942X011
...
71
NUT HXKEP 1/4X20 HUS-73640400
...
72
STRAP GRILLE 505 HUS-110350X505
...
74
SUB= 73690600 HUS-73680600
...
86
PANEL.SIDE.RH.ASM HUS-123764X505
...
87
PANEL.SIDE.LH.ASN HUS-123765X505
...
90
WASHER PM HUS-19091216
...
100
FOAM STRIP T HUS-109458X
...
102
"CLIP,INSULATOR" HUS-126471X
...
108
SUB= 74780612 HUS-74760612
...
114
BRACKET.SUPT.DASH HUS-145349
...
115
COVER ACCESS HUS-121794X
...
117
WASHER.SERRATED. HUS-144283
...
118
BRACKET.CLUTCH.MC HUS-145595
...
123
SUB= 149036 HUS-144712
...
124
BRACKET.PICK.RH HUS-144713
...
125
SCREW HUS-74180412
...
127
PAL NUT HUS-120579X
...
128
SCREW SPECIAL HUS-124201X
