Husqvarna 4P6D9A (1995) Tractor

Model: 4P6D9A (1995)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
xx
TRANSAXLE, COMPLETE HUS-794513
...
1
COVER TRANSAXLE HUS-772098A
...
2
BEARING NEEDLE HUS-780155
...
3
CASE TRANSAXLE HUS-770088
...
4
SHAFT COUNTER HUS-776291
...
5
SHAFT, OUTPUT, 9T HUS-776275
...
6
GEAR, OUTPUT, 35T HUS-778247
...
7
GEAR, SPUR, 15T HUS-778253
...
8
KEY HUS-792138
...
9
COLLAR SHIFT HUS-784216
...
10
ROD AND FORK ASSY SHIFT HUS-784342
...
11
GEAR BEVEL, 33T HUS-778246
...
12
BEVEL PINION, 13T HUS-778245
...
13
GEAR BEVEL HUS-778198
...
14
PINION, 10T HUS-778197
...
15
GEAR, RING, 31T HUS-778248
...
16
BLOCK DRIVE HUS-786027
...
17
PIN DRIVE HUS-786019
...
18
SPACER, .350/.340 THICK HUS-786121
...
18A
SPACER, .276/.268 THICK HUS-786122
...
20
BALL STEEL, 5/16" DIA. HUS-792077
...
21
SCREW, 3/8-16 X 3/8" HUS-792078
...
22
SPRING HUS-792079
...
24
THRUST BEARING HUS-780071
...
25
SCREW HEX HD 5/16-18 X 1-1/4 HUS-792129
...
25A
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
26
RING STRAP HUS-792018
...
27
RING STRAP HUS-792018
...
28
RETAINING RING HUS-788040
...
29
WASHER THRUST HUS-780072
...
30
WASHER THRUST HUS-780108
...
31
WASHER THRUST HUS-780128
...
31A
WASHER HUS-780107
...
31B
WASHER THRUST HUS-780042
...
36
DISK BRAKE HUS-790043
...
37
PLATE BRAKE PAD HUS-790007
...
38
BRAKE PAD HUS-799021
...
39
PIN DOWEL HUS-786026
...
40
WASHER HUS-792076A
...
41
LEVER BRAKE HUS-790047
...
42
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
42A
SCREW, 1/4-20 X 2-1/4 HUS-792085A
...
43
LOCKNUT 5/16-24 HUS-792075
...
44
HOLDER BRAKE PAD HUS-790025
...
45
SPACER HUS-786067
...
46
BRKT BRAKE LEVER HUS-786086
...
47
AXLE, 12-5/16" LONG HUS-774832
...
48
AXLE, 16-3/16" LONG HUS-774831
...
49
GEAR, SPUR, 41T HUS-778216A
...
50
GEAR, SPUR, 35T HUS-778206A
...
51
GEAR, SPUR, 30T HUS-778205A
...
52
GEAR, SPUR, 25T HUS-778204A
...
53
GEAR, SPUR, 22T HUS-778203A
...
54
GEAR, SPUR, 19T HUS-778273
...
57
GEAR, SPUR, 15T HUS-778199
...
58
GEAR, SPUR, 20T HUS-778200
...
59
GEAR, SPUR, 25T HUS-778201
...
60
GEAR, SPUR, 31T HUS-778208
...
65
WASHER HUS-780139
...
66
SHAFT INPUT HUS-776274
...
67
SHAFT BRAKE HUS-776313
...
71
SEAL SQUARE CUT HUS-788069
...
71A
PUSHNUT HUS-792145
...
72
PLUG, THRDED, 9/16-18 HUS-792074
...
79
SPRING HUS-792144
...
81
CHAIN, ROLLER HUS-786081
...
82
SPROCKET 9T HUS-786082
...
83
SPROCKET 18T (REV) HUS-786123
...
84
BEARING CAP HUS-786131
...
87
OIL SEAL 3/4 HUS-788042
...
88
BEARING BALL HUS-780119
...
89
BEARING BALL HUS-780050
...
90
GREASE BENTONITE, 32 OZ. HUS-788067B
...
96
BEARING THRUST HUS-780084
...
97
WASHER THRUST HUS-780051
...
98
WASHER HUS-780165
...
99
"O" RING HUS-788077
...
100
WASHER CUPPED HUS-780166
...
101
CARRIER DIFF THREADED HOLES HUS-774833
...
102
CARRIER DIFF HUS-774834
...
103
SCREW, 1/4-20 X 2-1/4 HUS-792020
...
104
WASHER LOCK 1/4 HUS-792006
...
105
WASHER HUS-780153
...
105
SLEEVE HUS-786144
...
107
BEARING NEEDLE HUS-780152
...
108
BEARING NEEDLE HUS-780150
...
109
"O" RING HUS-792001
...
110
SLEEVE STEPPED HUS-786142
...
111
RING SQ CUT HUS-788071
...
112
BEARING NEEDLE CAPPED HUS-780168
...
113
SLEEVE STEPPED HUS-786143
...
114
BEARING NEEDLE CAPPED HUS-780151
...
115
SLEEVE STEPPED HUS-786145
...
116
RING SQ CUT HUS-788070
...
117
BEARING NEEDLE HUS-780031
...
150
GASKET ELIMINATOR HUS-510334

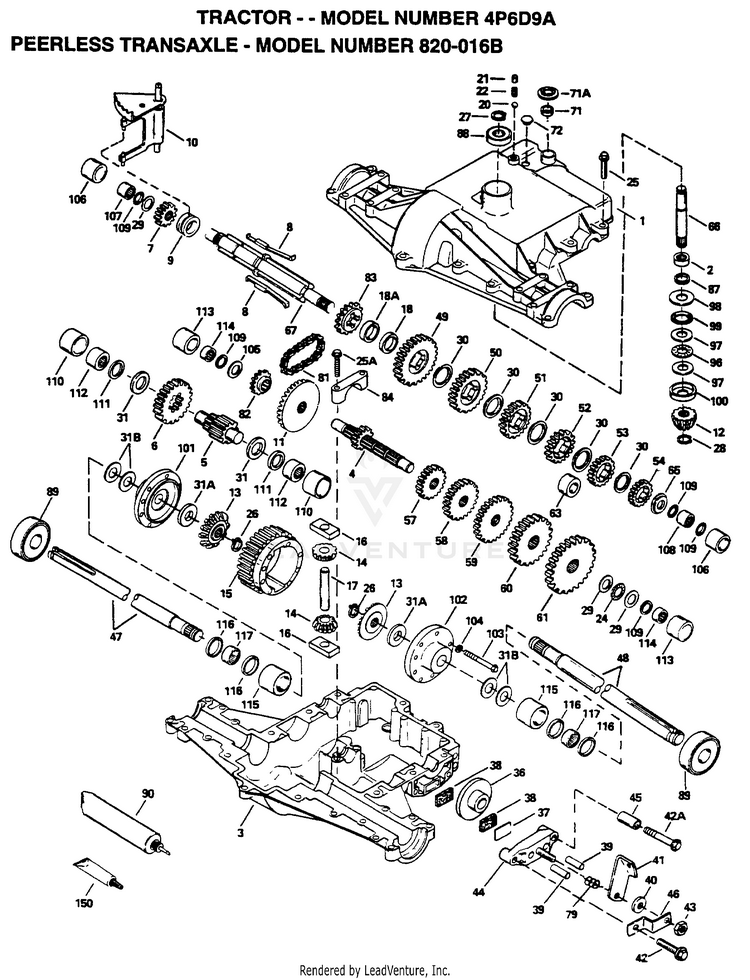

Schematic Image Zoomed
