product name

Husqvarna 4P6D9A (1995) Tractor

Model: 4P6D9A (1995)

Back To Assemblies

Save Part Not Listed?
product name

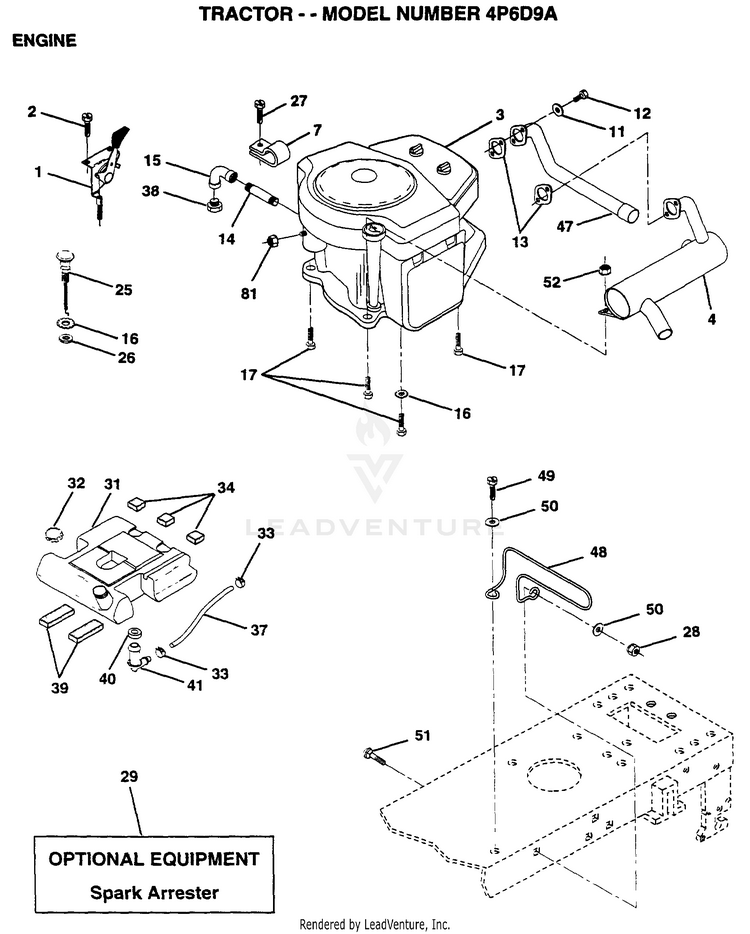

ENGINE

...
...
1
CONTROL.TRTL.37 HUS-143885
...
2
SCREW LT HUS-17720410
...
3
ENGINE B&S 18HP HUS-422707
...
4
MUFFLER HYT HUS-108373X
...
7
CLAMP.TUBE.DBL.EN HUS-138129
...
11
LOCKWASHER HUS-10040400
...
12
SUB= 74780414 HUS-74780412
...
13
SUB= 272250 HUS-8545J
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
25
"CONTROL.CHOKE.51""" HUS-138672
...
26
SUB= 7810H HUS-73610600
...
27
SCREW.10-24X1/2 HUS-17541008
...
28
SUB= 73690600 HUS-73680600
...
29
SUB= 532137180 HUS-137180
...
31
SUB= 151346 HUS-141069
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
34
PAD-SPACER LT HUS-106082X
...
37
FUEL LINE T HUS-8543R
...
39
PAD IDLER TI HUS-109227X
...
40
BUSHING OUTLET T HUS-3645J
...
41
STEM.TANK.FUEL HUS-139277
...
47
EXHAUST TUBE T HUS-100229L
...
48
MUFFLER GUARD HUS-135029
...
49
BOLT D HUS-72110608
...
50
WASHER HYT HUS-19131616
...
51
SCREW HUS-17490612
...
52
NUT HUS-73510600
...
81
NUT HUS-73510400
