Husqvarna 4CA (2000) Walk Behind Rotary Mower

Model: 4CA (2000)

Save Part Not Listed?
product name

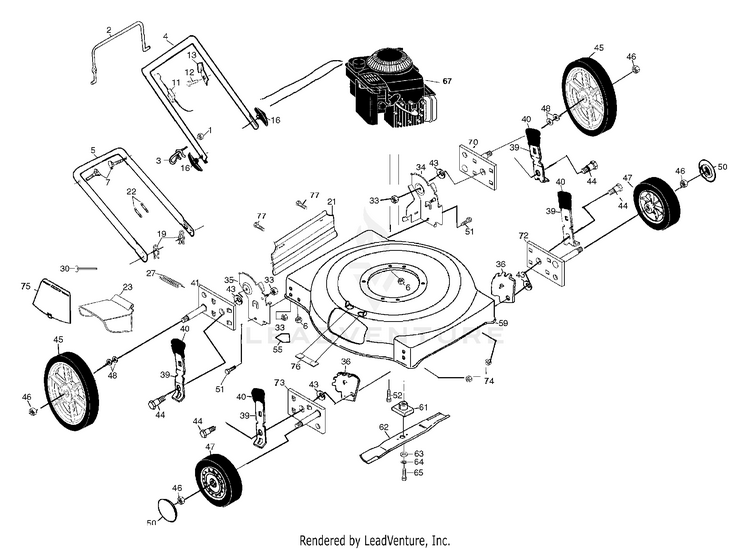

General Assembly

...
...
1
Locknut 1/4-20 HUS-63601
...
2
Control Bar HUS-86902
...
3
Rope Guide HUS-132001
...
4
Upper Handle HUS-169709X479
...
5
Lower Handle HUS-169708X479
...
6
Locknut 1/4-20 HUS-63601
...
7
Handle Bolt 5/16-18 HUS-131959
...
11
Engine Zone Control Cable HUS-156569
...
12
Hex Washer Head Screw #10-24 x 1/2 HUS-750097
...
13
Up-Stop Bracket HUS-86899X004
...
16
Handle Knob HUS-136376
...
19
Hairpin Cotter HUS-51793
...
21
Rear Deflector HUS-165858
...
22
Wire Tie HUS-664-26
...
23
Discharge Guard HUS-160831
...
27
Torsion Spring HUS-160832
...
30
Hinge Rod HUS-160833
...
33
Locknut 5/16-18 HUS-63124
...
34
Wheel Bracket Support (Left) HUS-170373X479
...
35
Wheel Bracket Support (Right) HUS-170374X479
...
36
Wheel Bracket Adjuster HUS-160835X007
...
39
Selector Spring HUS-168360X004
...
40
Selector Knob HUS-87877
...
41
Axle Arm Assembly (RR) HUS-167131X004
...
43
Washer HUS-19112222
...
44
Shoulder Bolt HUS-160828
...
45
Wheel Assembly (Rear) HUS-701401
...
46
Locknut 1/16-18 HUS-83923
...
47
Wheel Assembly (Front) HUS-146247
...
48
Washer HUS-57143
...
50
Hubcap HUS-77400
...
51
Hex Head Bolt 5/16-18 HUS-74760514
...
52
Hex Head Thread Rolling Screw 3/8-16 x 1 HUS-150406
...
55
Danger Decal HUS-107339X
...
59
Lawn Mower Housing (Incl. Key Nos. 55) HUS-165187
...
61
Blade Adapter HUS-851514
...
62
22" Blade HUS-141114
...
63
Hardened Washer HUS-851074
...
64
Helical Lockwasher 3/8 HUS-850263
...
65
Screw Hex Head 3/8-24 x 1-3/8 (Grd. 8) HUS-851084
...
70
Axle Arm Assem.(LR) HUS-167130X004
...
72
Axle Arm Assm. ((LF) HUS-167132X004
...
73
Axle Arm Assm. (RF) HUS-167133X004
...
74
Nut HUS-751153
...
75
Plate. Mulcher HUS-160830
...
76
Clip. Closeout HUS-161622
...
77
Screw HUS-74760412
...
xx
Warning Decal (Not shown) HUS-162300
...
xx
Operator's Manual (English) HUS-172782
...
xx
Replacement Parts Manual HUS-171897
...
xx
Grass Catcher Available accessories not included with mower HUS-GCK3300
