Husqvarna 461 (2013-01) Chain Saw

Model: 461 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

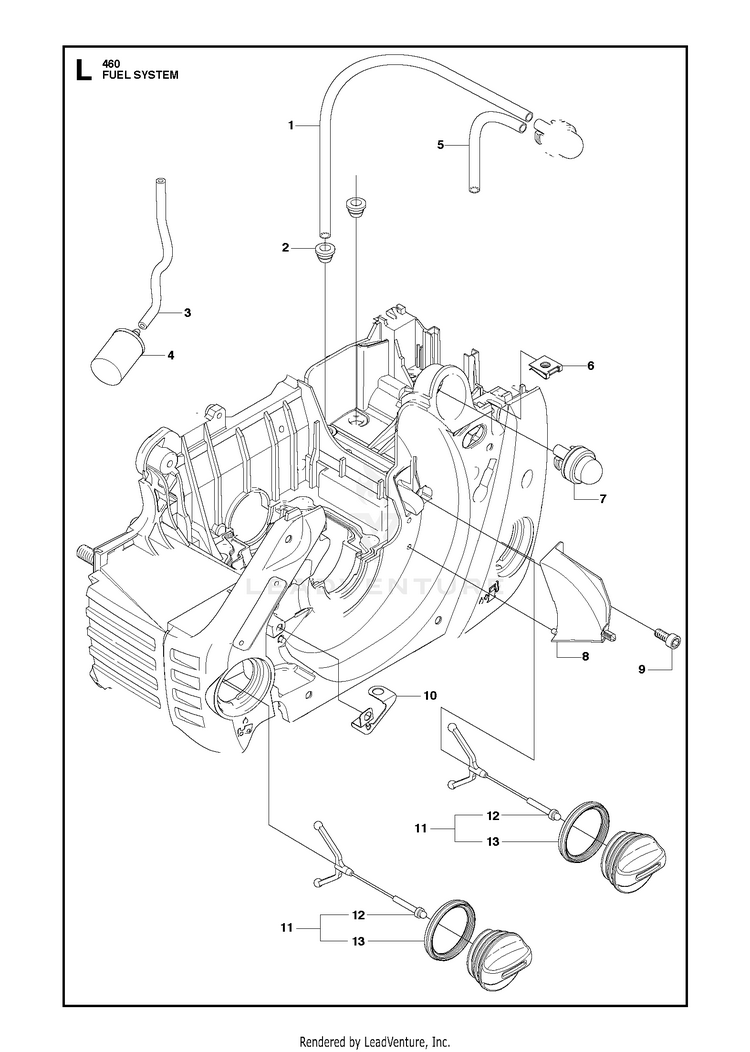

FUEL SYSTEM

...
...
1
HOSE HUS-537042408
...
2
FUEL TANK BUSHING HUS-503735801
...
3
KIT HOSE SPIRAL 300 HUS-591375201
...
4
KIT FUEL FILTER HUS-591375401
...
5
FUEL HOSE/38MM HUS-537042402
...
6
CLIP HUS-503226902
...
7
AIR PURGE BUBBLE HUS-503936601
...
8
JET HUS-598027801
...
9
SCREW HUS-503217412
...
10
SWITCH PLATE HUS-537278001
...
11
TANK CAP HUS-537215207
...
12
TANK LOCK . 11 HUS-503578901
...
13
SEALING . 11 HUS-589241101
