Husqvarna 461 (2013-01) Chain Saw

Model: 461 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

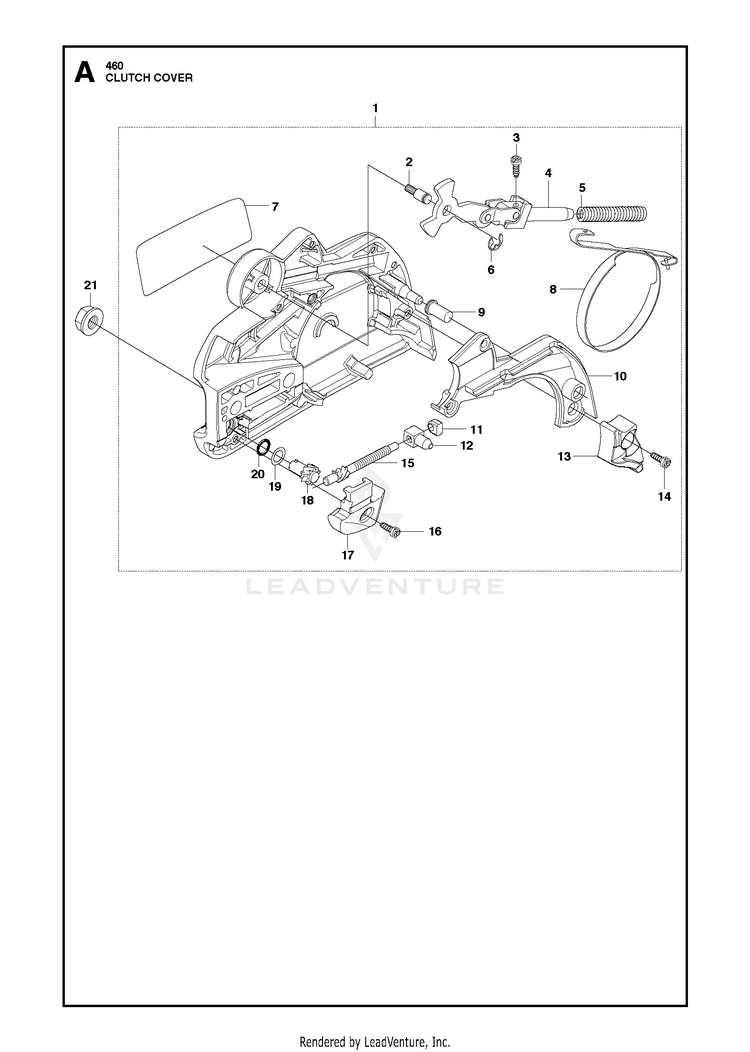

CLUTCH COVER

...
...
1
CLUTCH COVER 455/465 HUS-546354301
...
2
PIN . 1 HUS-503892901
...
3
SCREW . 1 HUS-503217010
...
4
JOINT . 1 HUS-503890802
...
5
SPRING . 1 HUS-503465901
...
6
E-RING 4 . 1 HUS-735310820
...
7
DECAL, CLUTCH COVER . 1 HUS-537298601
...
8
BRAKE BAND . 1 HUS-537043001
...
9
SLEEVE . 1 HUS-503855201
...
10
COVER . 1 HUS-537108002
...
11
SLEEVE . 1 HUS-537017401
...
12
PAWL . 1 HUS-537286601
...
13
PROTECTOR . 1 HUS-537089001
...
14
SCREW . 1 HUS-503217010
...
15
CHAIN TENSIONER KIT . 1 HUS-575260404
...
16
SCREW . 1 HUS-503217010
...
17
COVER . 1 HUS-537286401
...
18
WORM WHEEL . 1 HUS-537079402
...
19
WASHER . 1 HUS-503230063
...
20
O-RING . 1 HUS-740480702
...
21
NUT M8 FLANGE HUS-503220001
