Husqvarna 461 (2013-01) Chain Saw

Model: 461 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

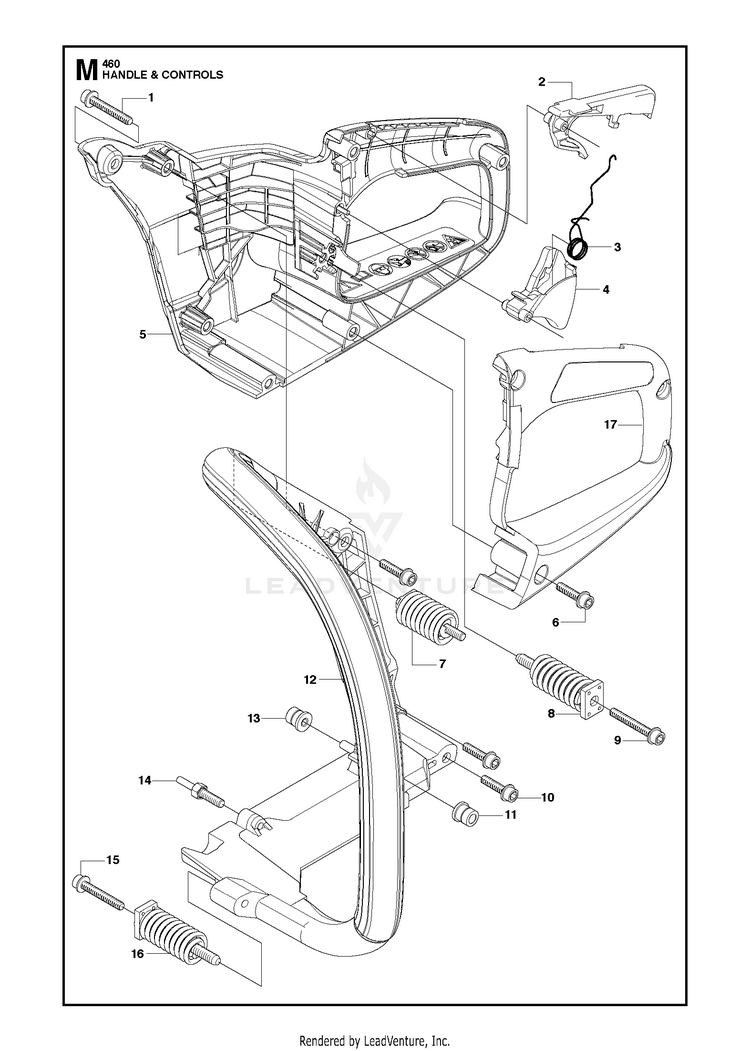

HANDLE CONTROLS

...
...
1
SCREW HUS-503218876
...
2
THROTTLE LOCK HUS-502440201
...
3
SPRING HUS-503998601
...
4
THROTTLE TRIGGER HUS-537260503
...
5
REAR HANDLE HUS-580945901
...
6
SCREW HUS-503210270
...
7
VIBRATIONS ABSORBER HUS-537304601
...
8
VIBRATION ABSORBER HUS-503854101
...
9
SCREW HUS-503218876
...
10
SCREW HUS-503210270
...
11
MOVEMENT LIMITER HUS-503869201
...
12
FRONT HANDLE HUS-537230502
...
13
MOVEMENT LIMITER HUS-503869201
...
14
PIN HUS-537242901
...
15
SCREW HUS-503218876
...
16
SPRING HUS-503923101
...
17
CAP - LEFT SIDE HANDLE HUS-537230704
