Husqvarna 461 (2013-01) Chain Saw

Model: 461 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

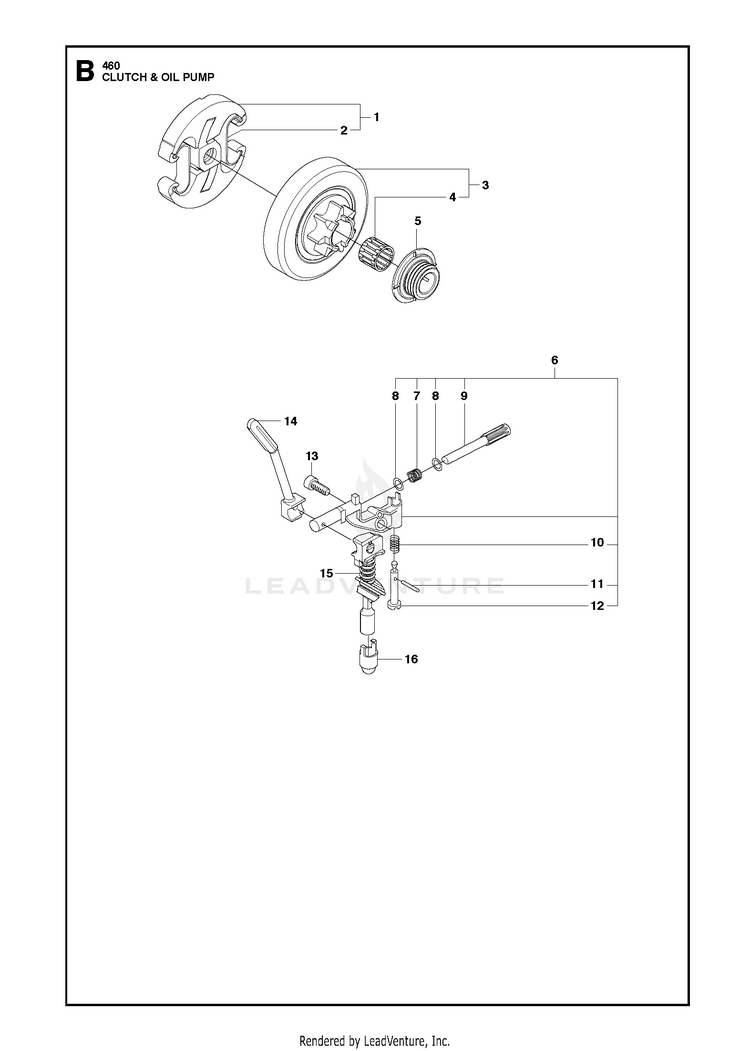

CLUTCH OIL PUMP

...
...
1
CLUTCH HUS-537110503
...
2
SPRING . 1 HUS-537359101
...
3
CLUTCH DRUM 325 x7 SPUR HUS-537291702
...
3
CLUTCH DRUM 3 /8 x7 SPUR HUS-537291604
...
4
NEEDLE BEARING 12.7X15.88X14 . 3 HUS-599531501
...
5
Gears HUS-598718301
...
6
OIL PUMP ASSY HUS-544180104
...
7
SPRING . 6 HUS-503891601
...
8
WASHER . 6 HUS-503230060
...
9
PUMP PISTON . 6 HUS-537069302
...
10
SPRING . 6 HUS-503891501
...
11
PIN . 6 HUS-721116430
...
12
ADJUSTER . 6 HUS-537027101
...
13
SCREW HUS-503217416
...
14
OIL HOSE HUS-537261501
...
15
OIL HOSE HUS-585514001
...
16
OIL SCREEN HUS-510044301
