Husqvarna 461 (2013-01) Chain Saw

Model: 461 (2013-01)

Back To Assemblies

Save Part Not Listed?
product name

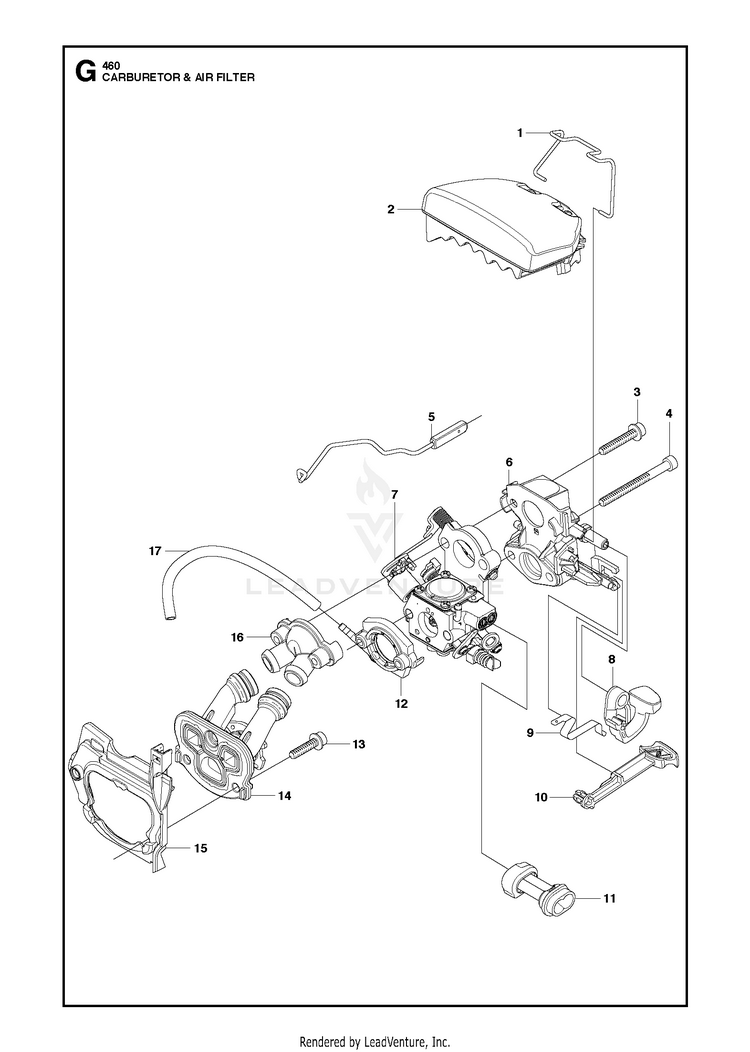

CARBURETOR AIR FILTER

...
...
1
LOOP HUS-537304901
...
2
AIR FILTER 80 HUS-537255701
...
2
AIR FILTER 44 HUS-537255702
...
2
AIR FILTER FELT HUS-537255703
...
3
SCREW HUS-503215525
...
4
SCREW HUS-503217450
...
5
THROTTLE ROD HUS-537260802
...
6
FILTER HOLDER HUS-544011101
...
7
CARBURETOR WTEA-1A P003 Walbro WTEA-1 HUS-531440701
...
8
STOP LEVER HUS-537255501
...
9
SPRING HUS-503869702
...
10
CHOKE CONTROL HUS-537255601
...
11
GUIDE SLEEVE CARB HUS-544071401
...
12
FLANGE HUS-537241501
...
13
SCREW HUS-503200216
...
14
INLET PIPE HUS-537321002
...
15
PARTITION HUS-537371401
...
16
BELLOWS HUS-537241401
...
17
FUEL HOSE HUS-503400610
